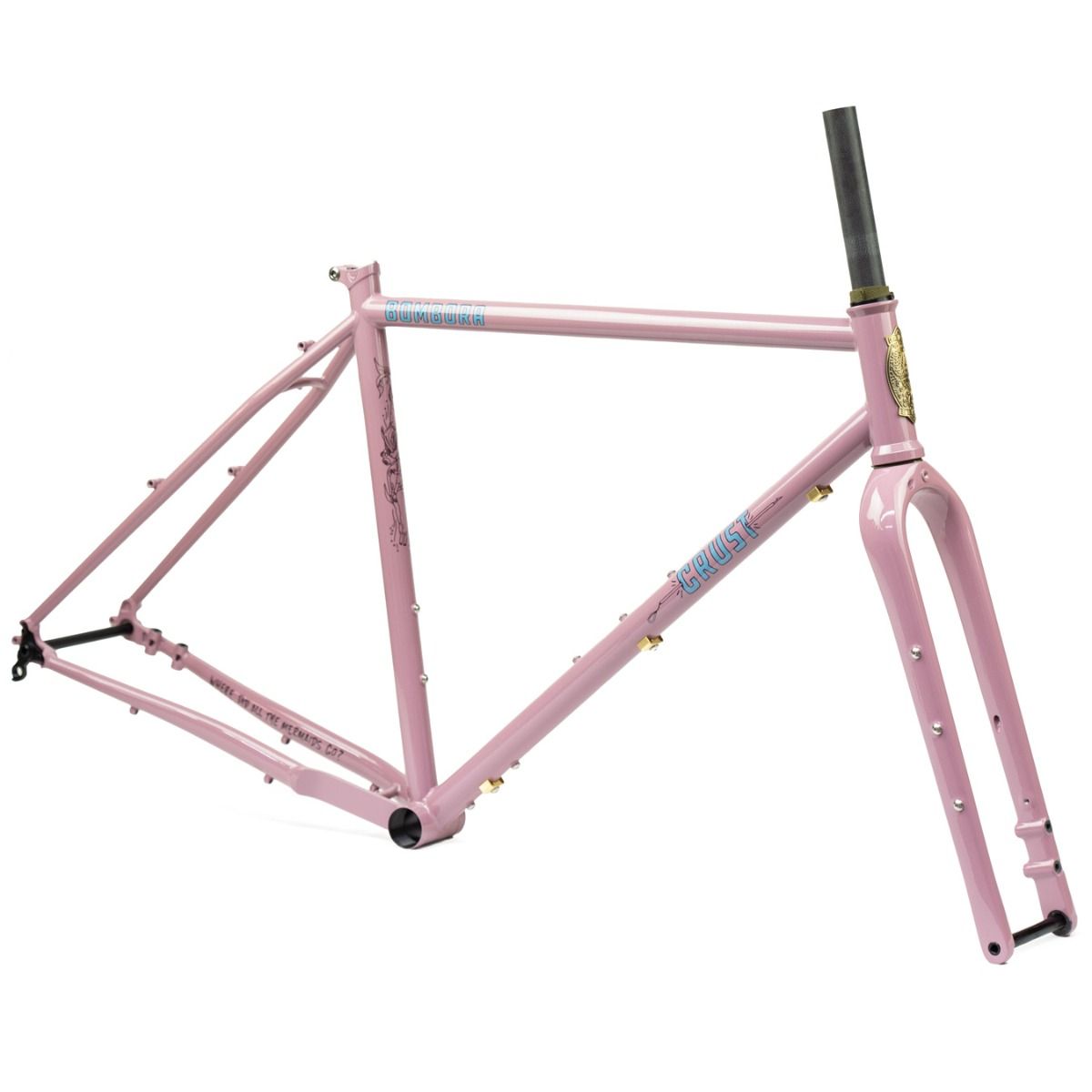

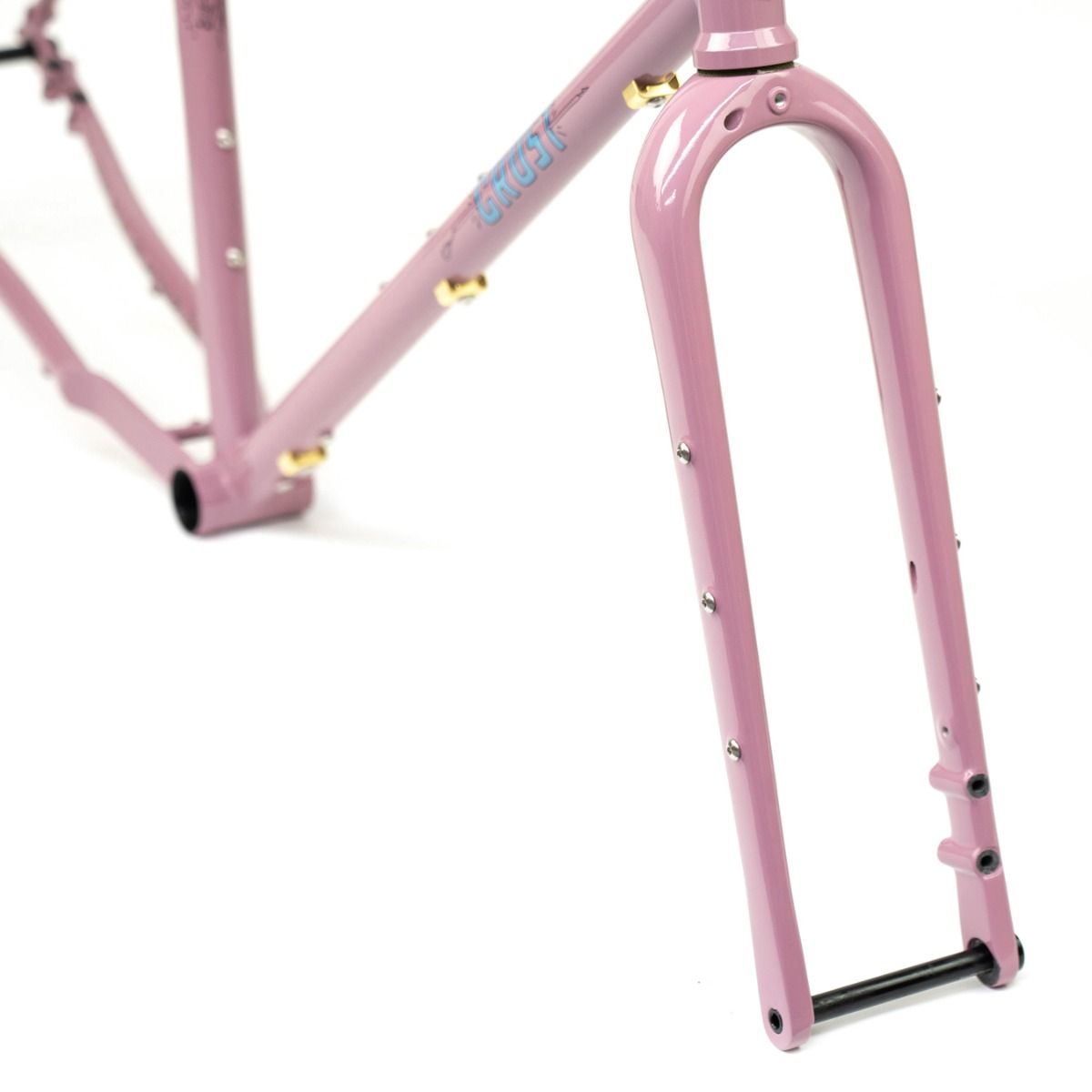

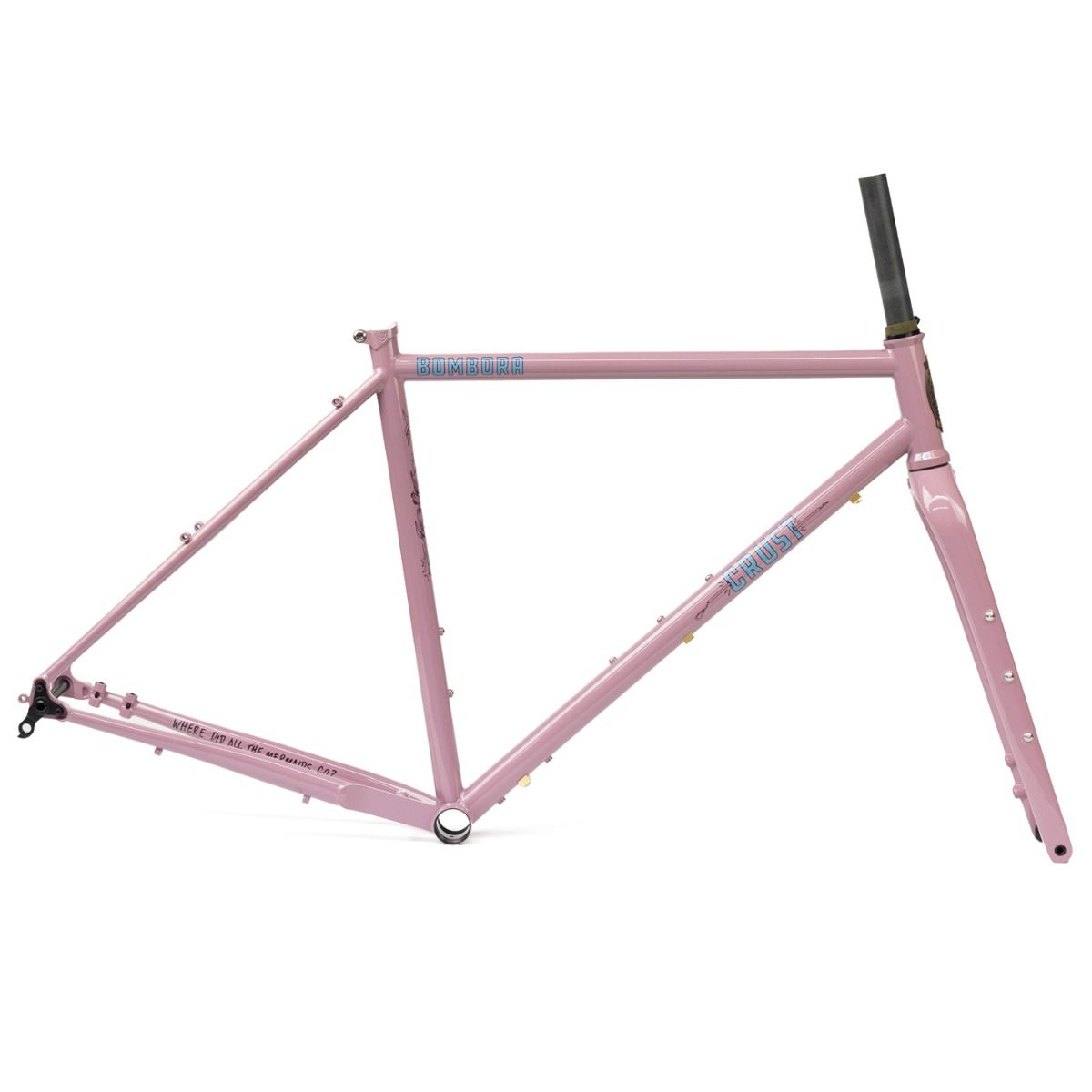

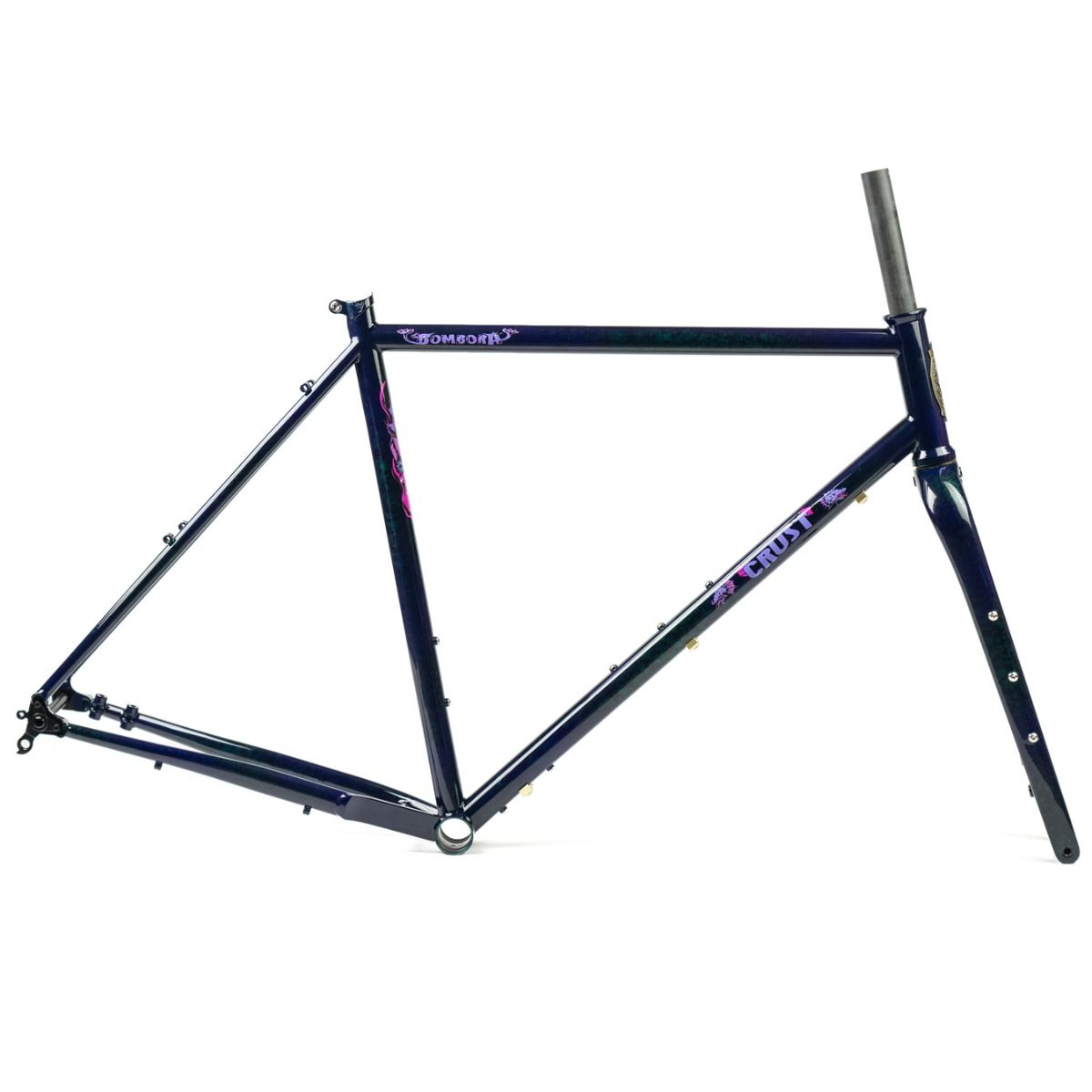

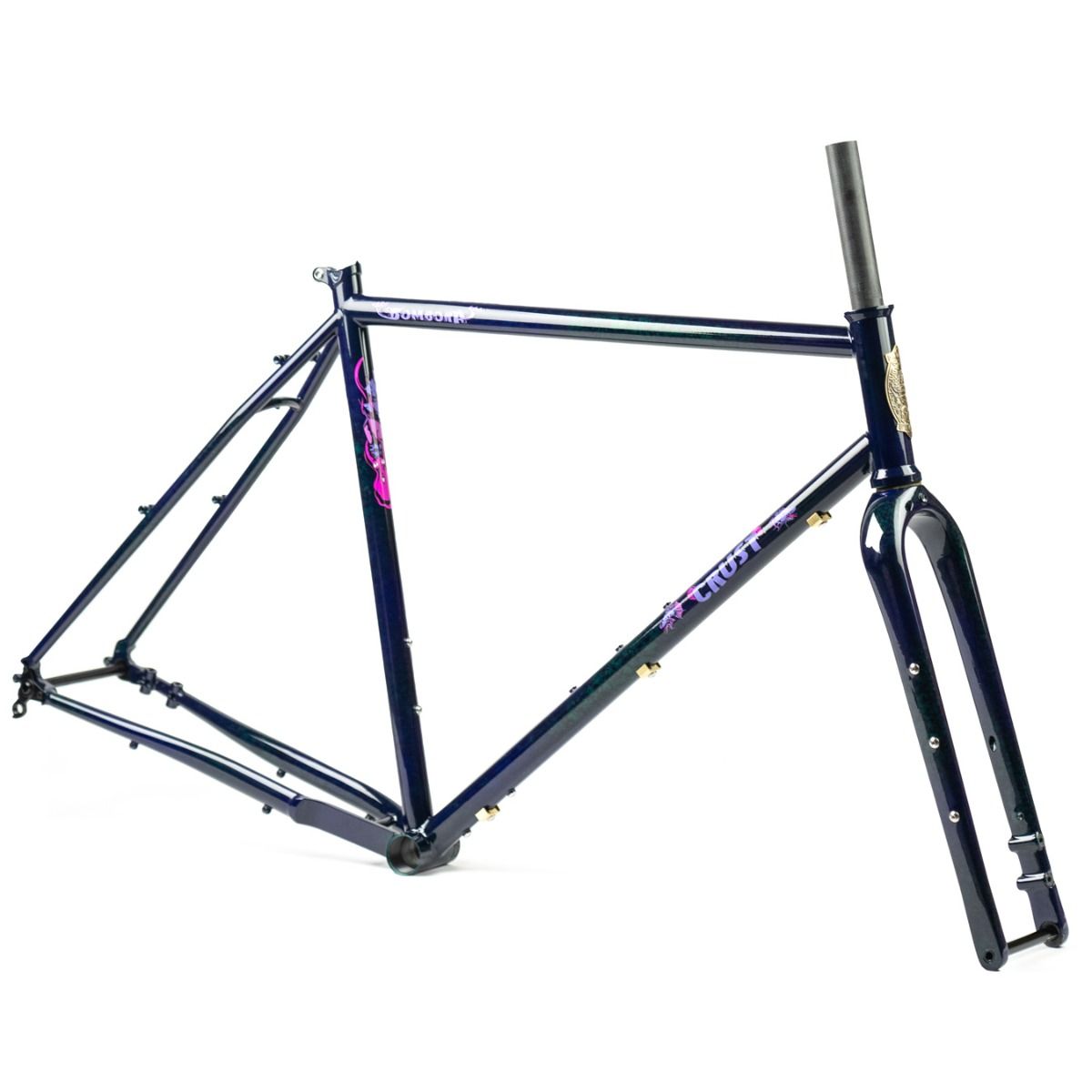

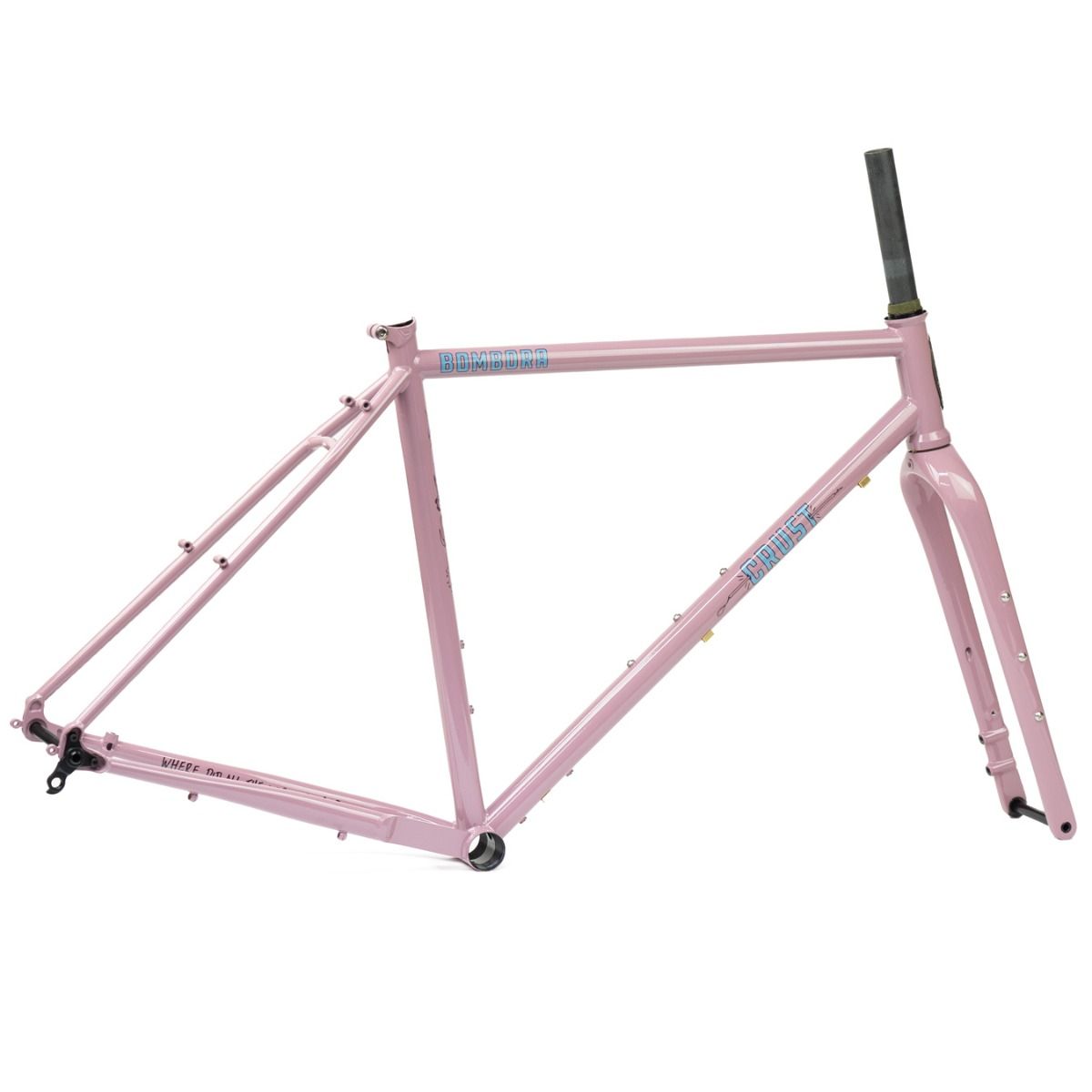

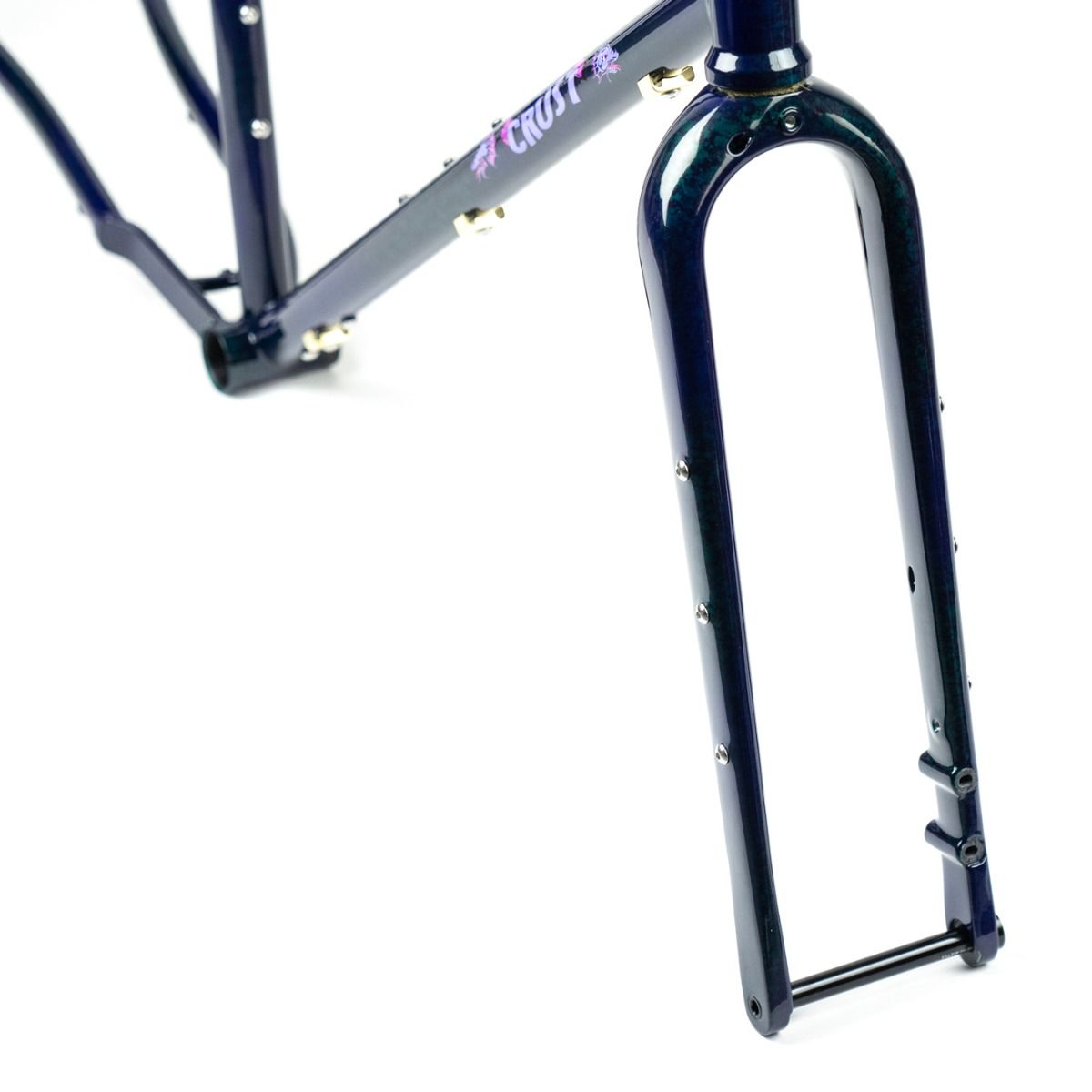

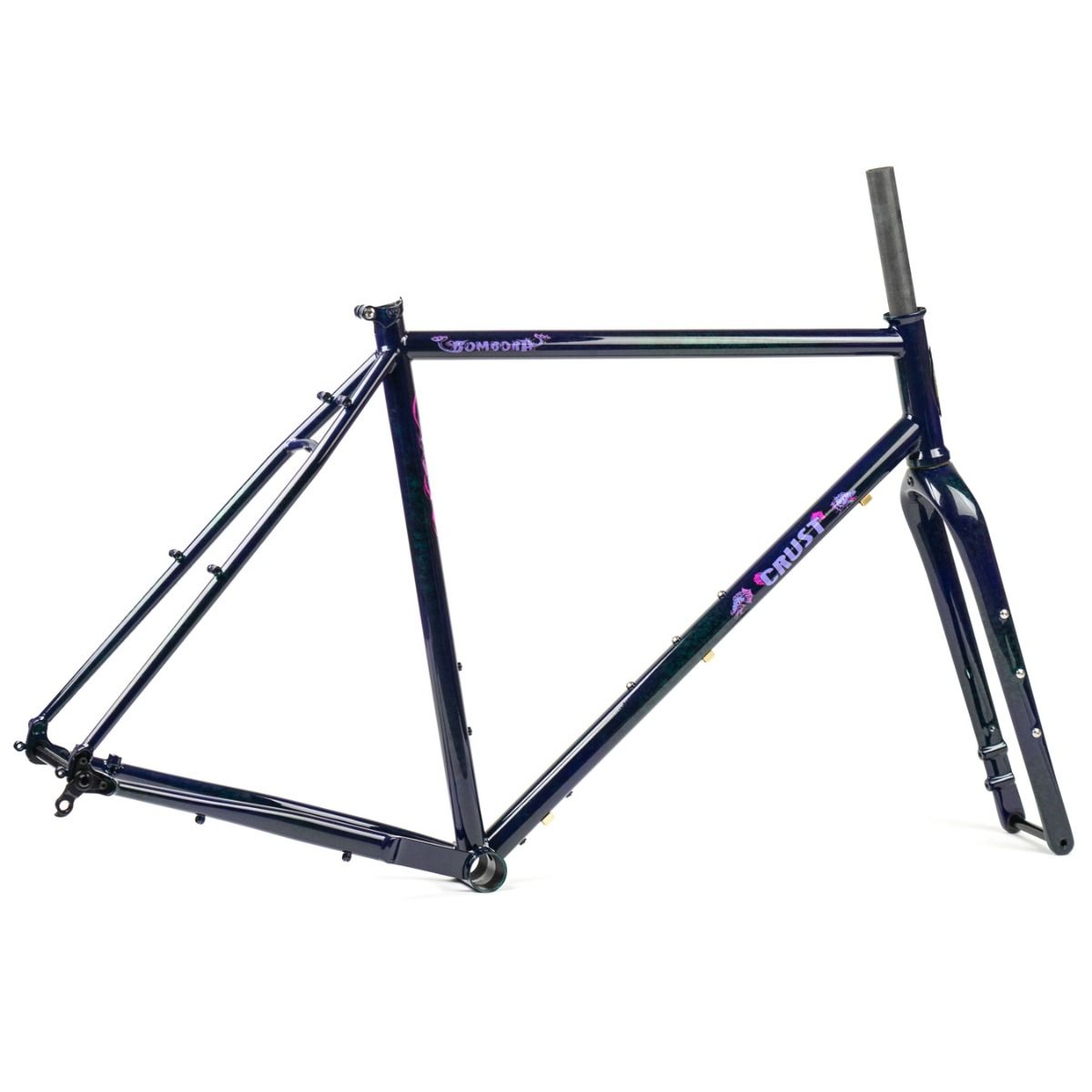

This is the Bomora with a Celos carbon fork, Celos is Crust Bikes new carbon fiber division.

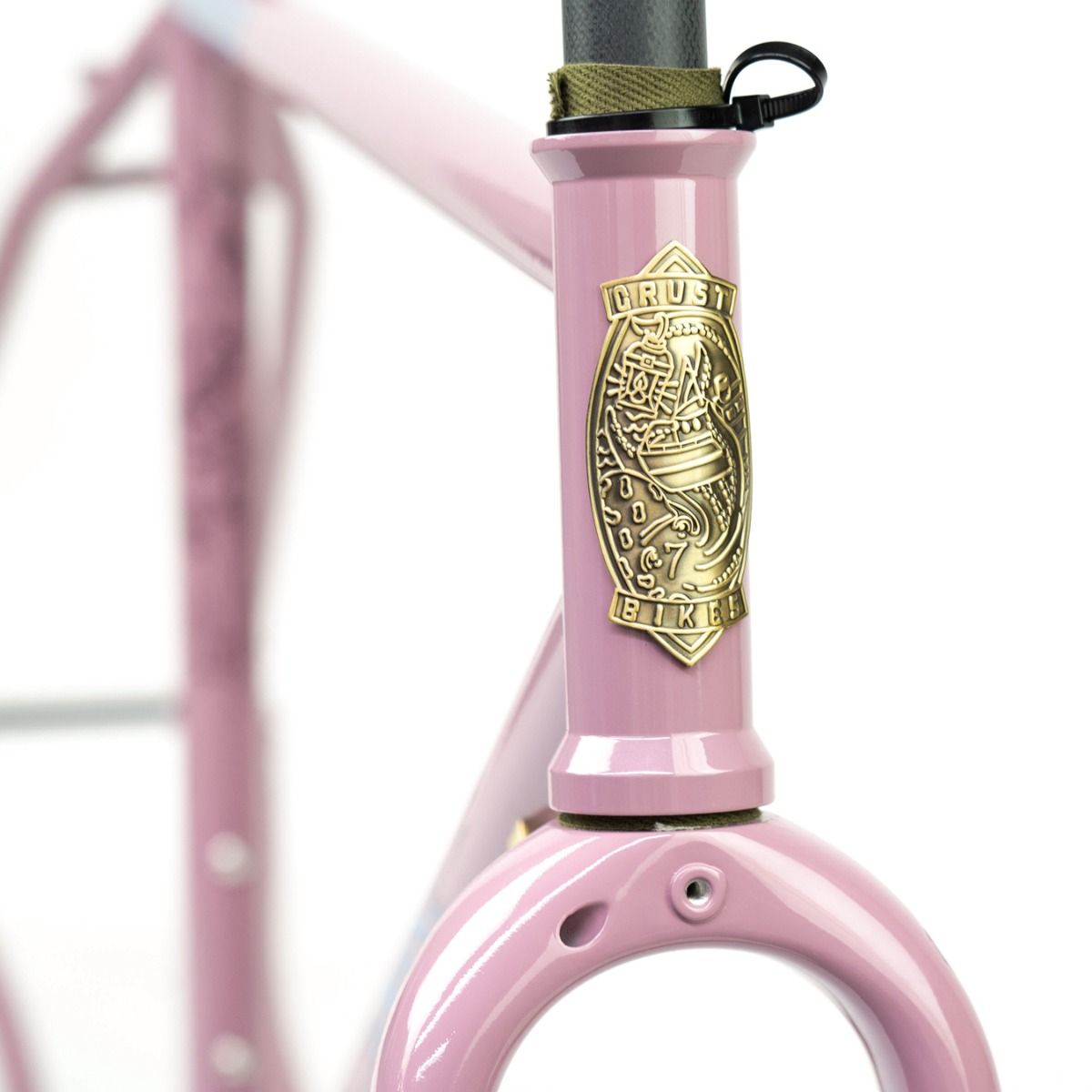

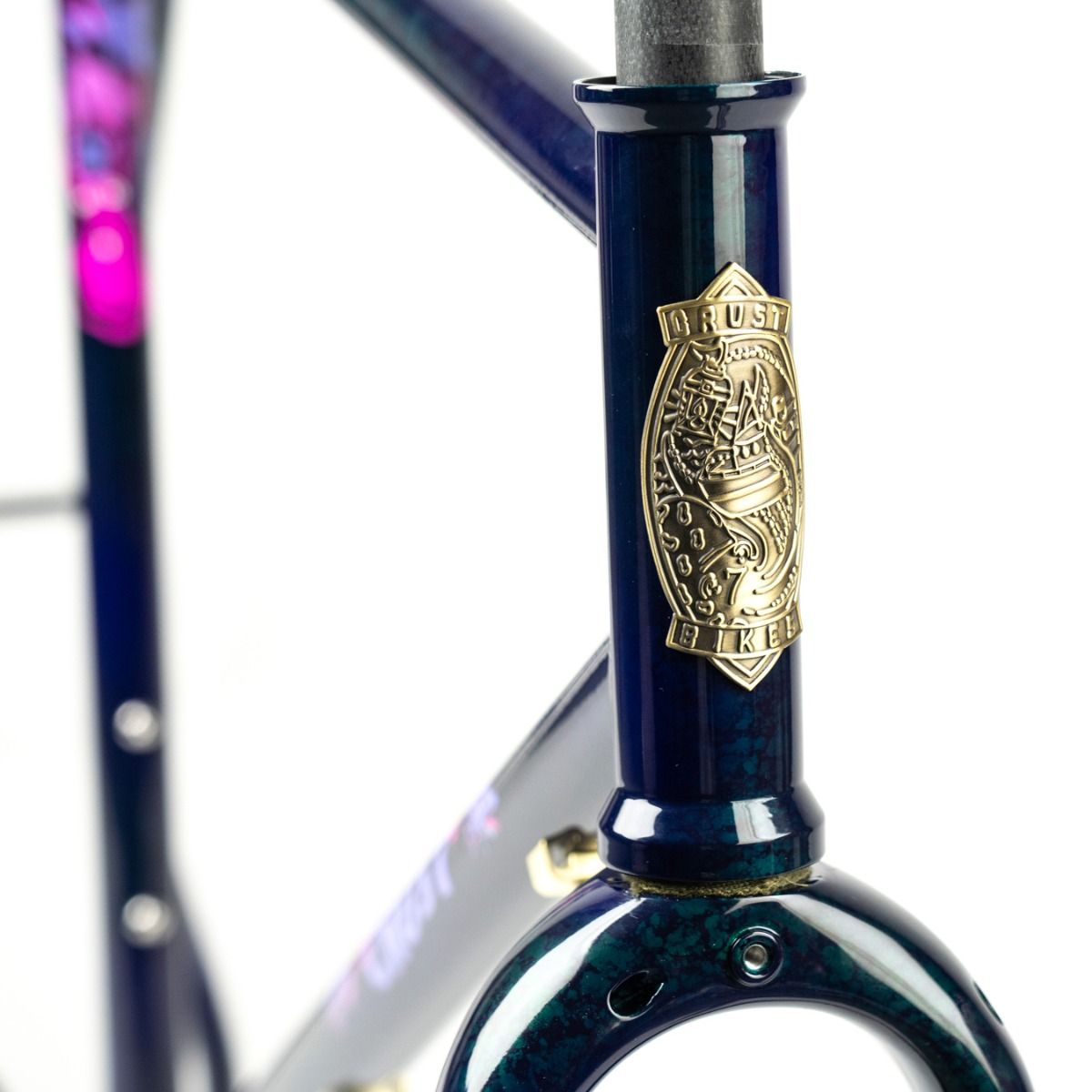

Integrated headset cups. Takes a Chris King Dropset 4 or any BMX integrated headset. Upper and lower bearing dimensions are 42mm with a 45 degree taper.
If you're curious about sizing, we usually recommend sizing up with the Bombora. Check the FAQ to find our contact info if you want to chat about it real quick.
IMPORTANT: The Bombora is NOT a mountain bike. Yes, we know it fits a large tire, but the tube set is light. Think about it as a "plus" size tire gravel bike. We keep the tube set light to keep the ride quality opulent. That means its great for bombing some road/ groads, but its not meant for single track or a big chunky jeep trail full of rocks and huge ruts for you to run into square on. If you do ride it on that kind of stuff and break it, we will not replace it.
Build Notes:
Designed around a 650b/ 27.5" Wheel with a 2.3" max tire size.
You can run it 700c with a max tire clearance of 48c on the rear and up to a 29x2.3" on the front.
Takes a ROAD crank. Ideally 1x with a maximum 44 tooth chainring. You can set it up 2x, but it's on you to figure that out.

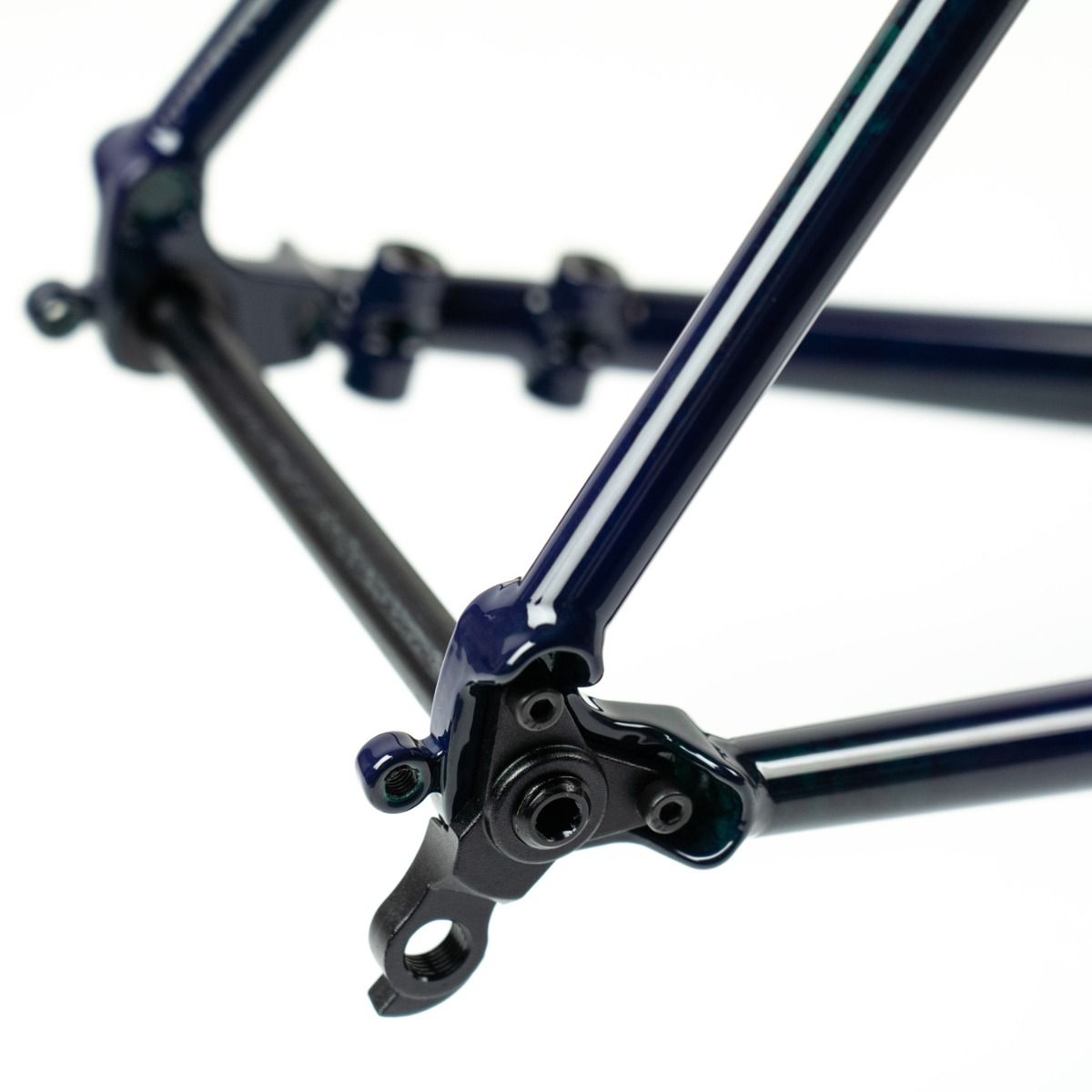

It uses flat mount calipers front and rear. Max rotor size front and rear is 160mm. If you're looking to get a Palm Oil Brake Kit it takes the same kit as the Evasion Lite.
Front and rear thru axles and compression cap for fork are included.

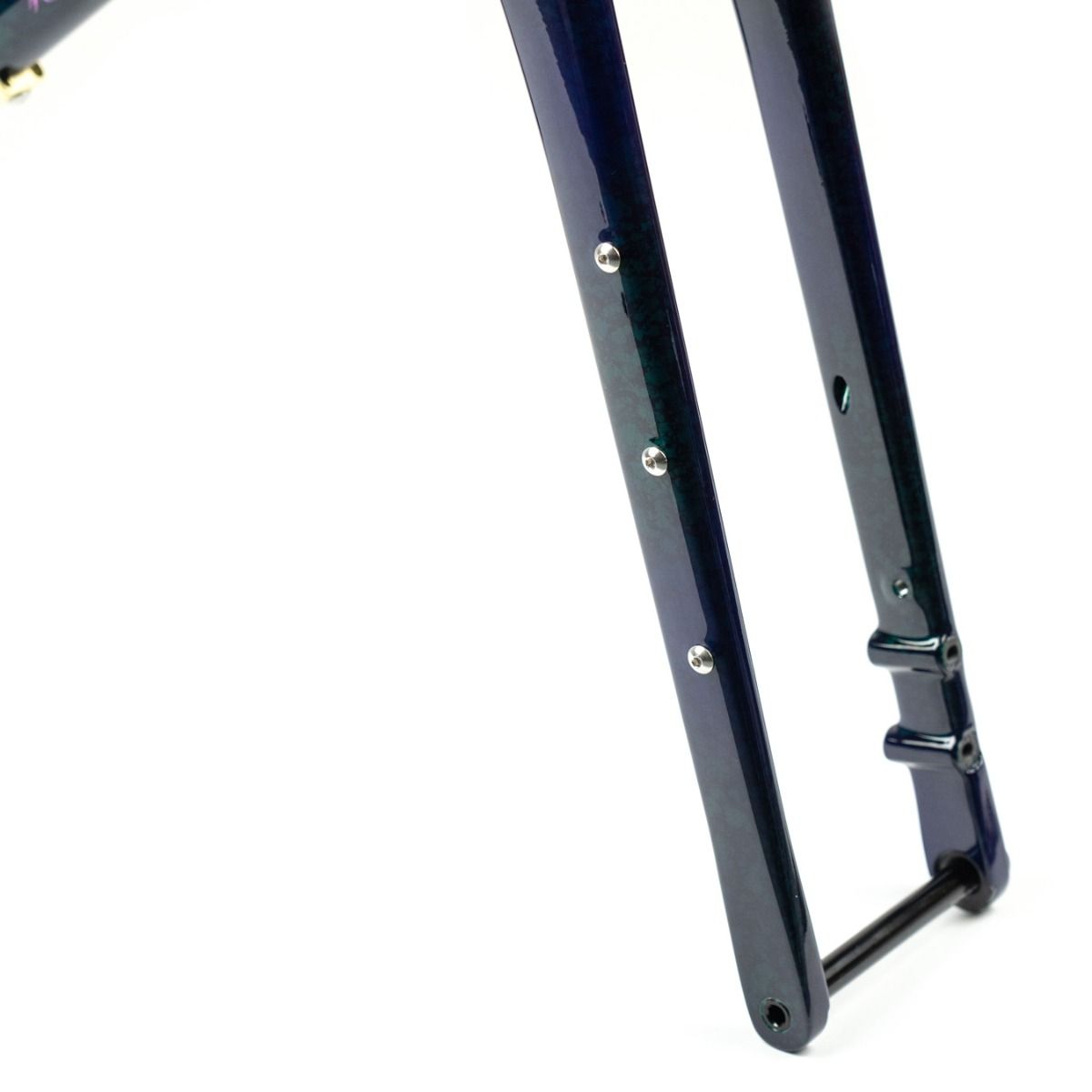

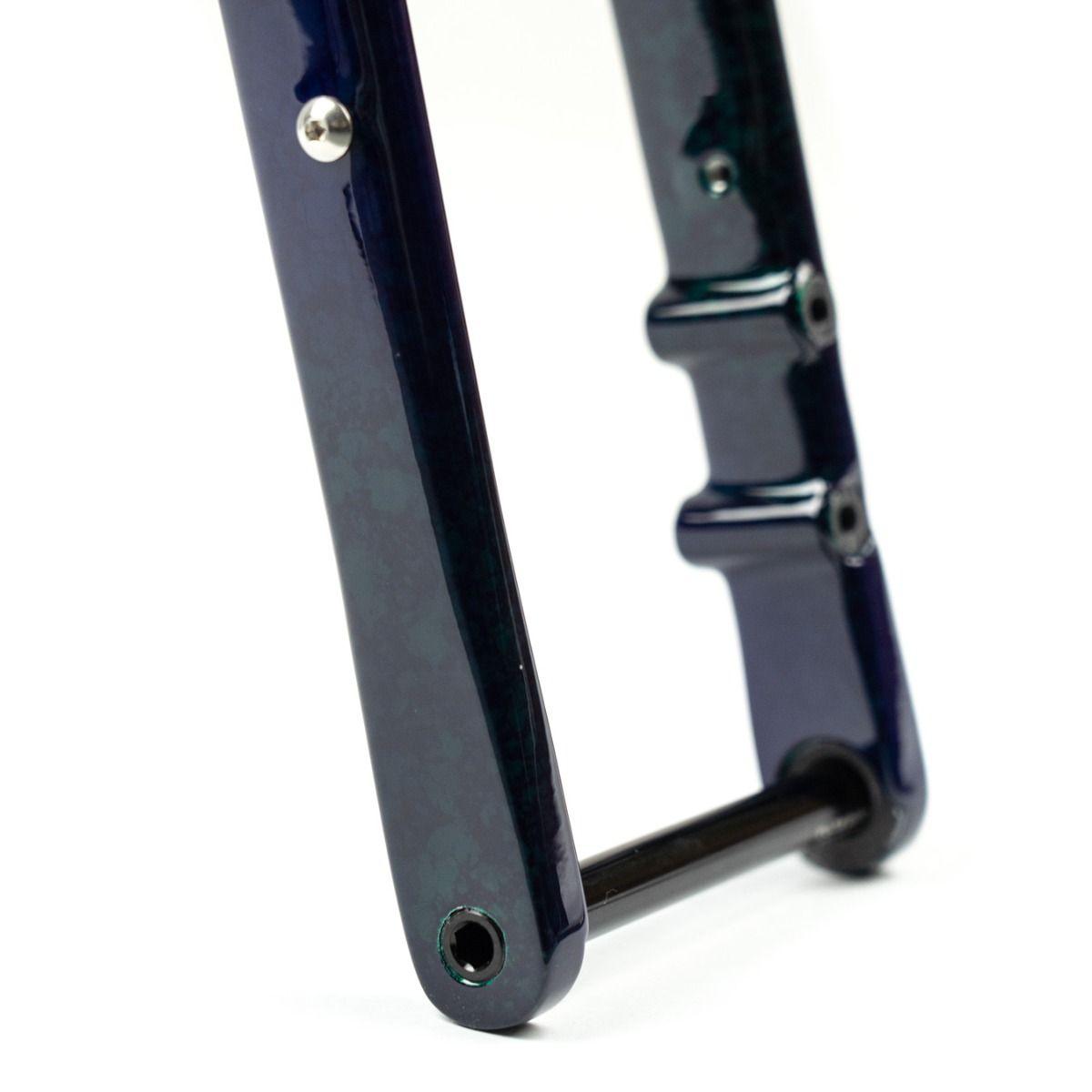

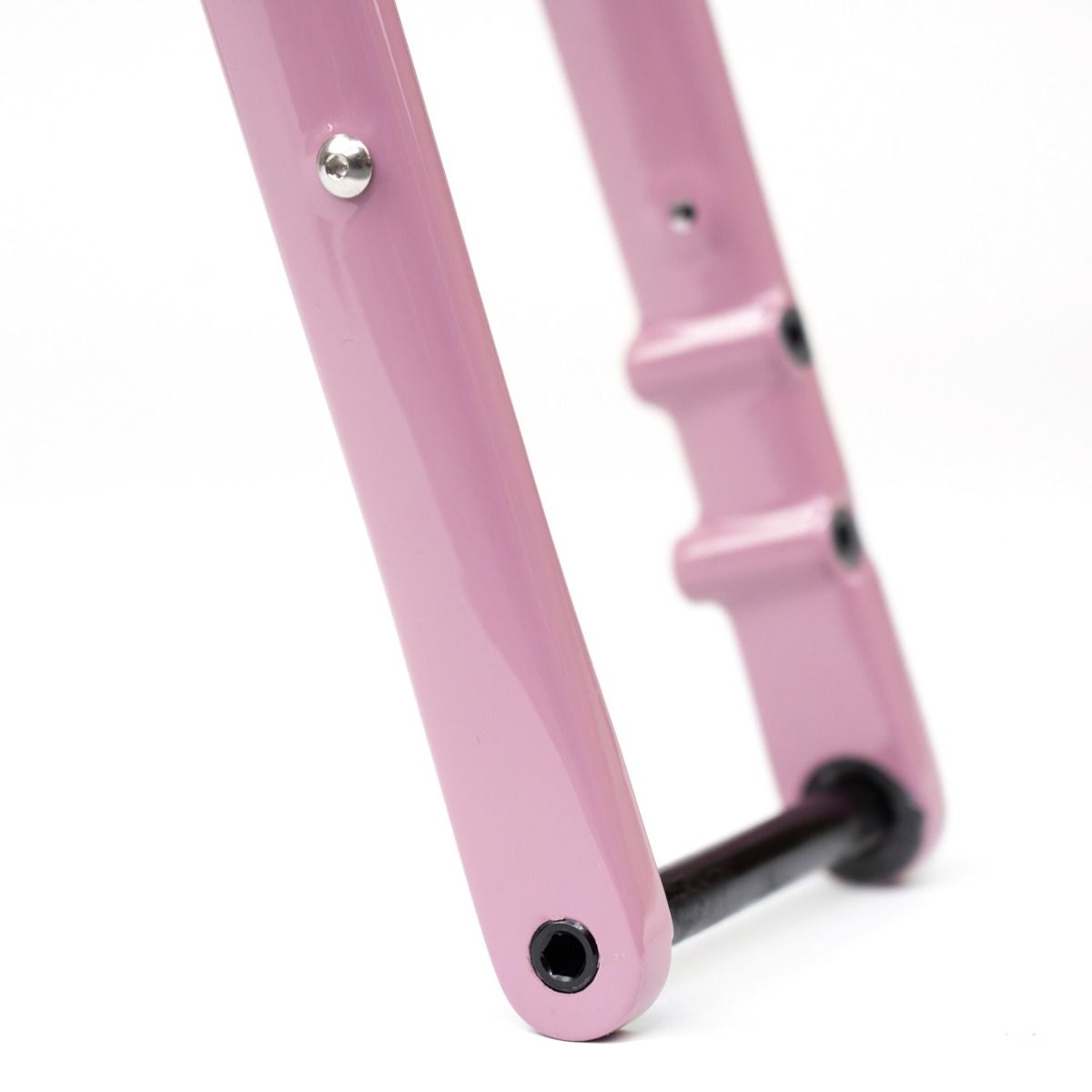

Here is some fork weight capacity specs for those of you looking to load up:
3 Pack Mount- 3kgs per side
Max Stack Under Stem= 40mm and you will need at least 5mm over top of the stem for the compression plug
HEADSET NOT INCLUDED
Details:

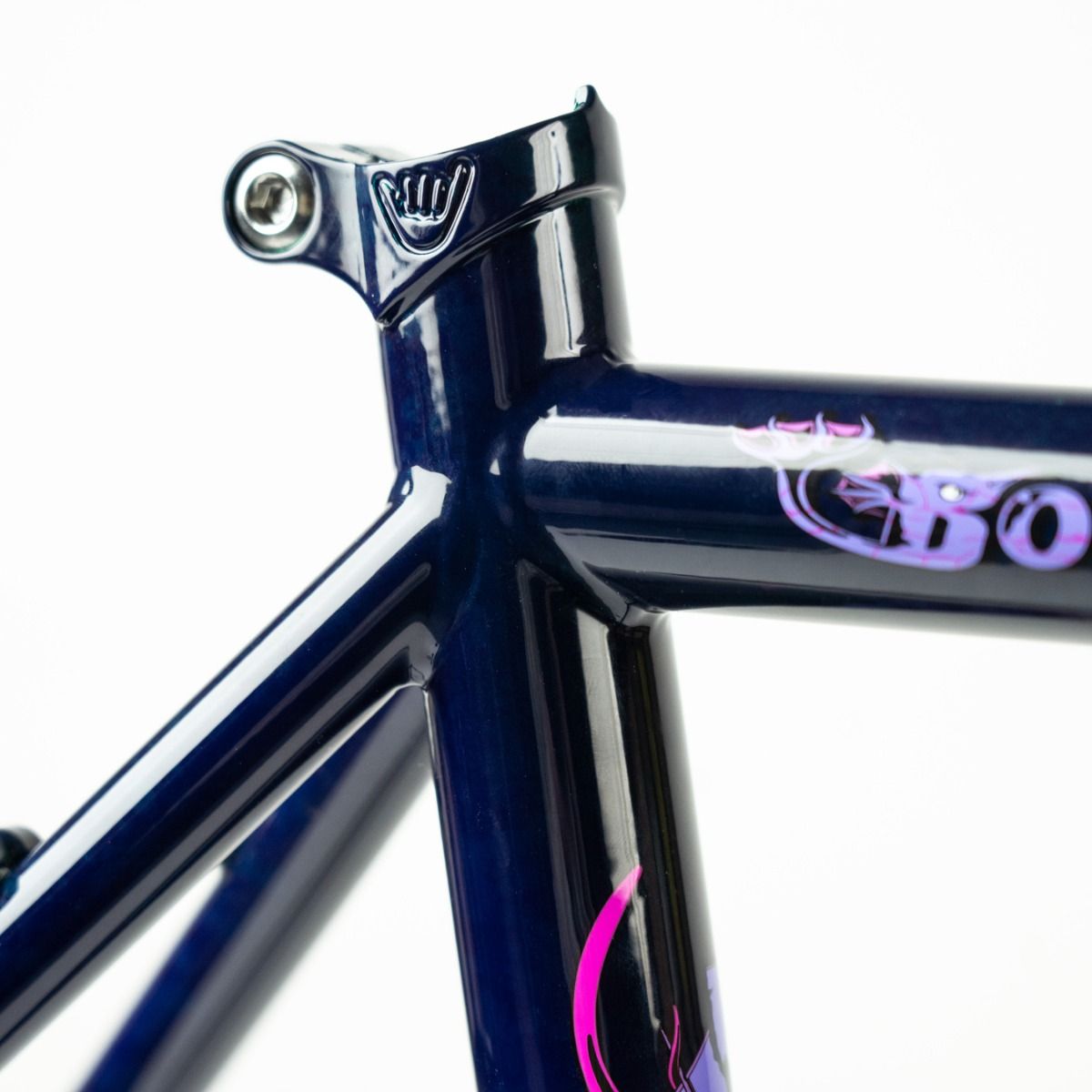

Frame is Handmade in Taiwan using Heat Treated Chromoly
Tig Welded

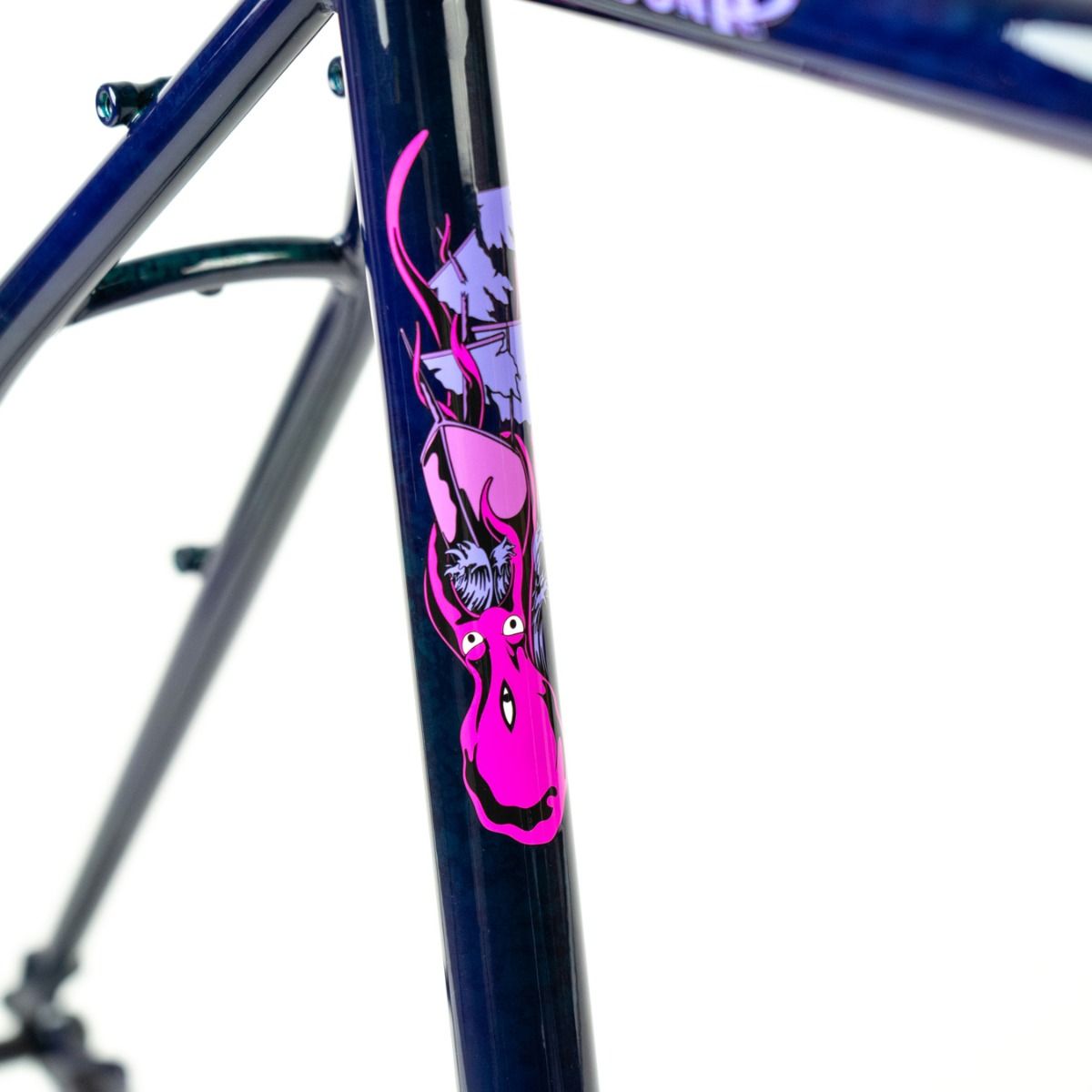

Colors- Pastel Violet: Sea Monster
Sizes- Extra Small 52cm | Small 54cm | Medium 56cm | Large 58cm | Extra Large 60cm | Extra Extra Large 62cm
Head Tube Diameter- 1 1/8" (EC34)

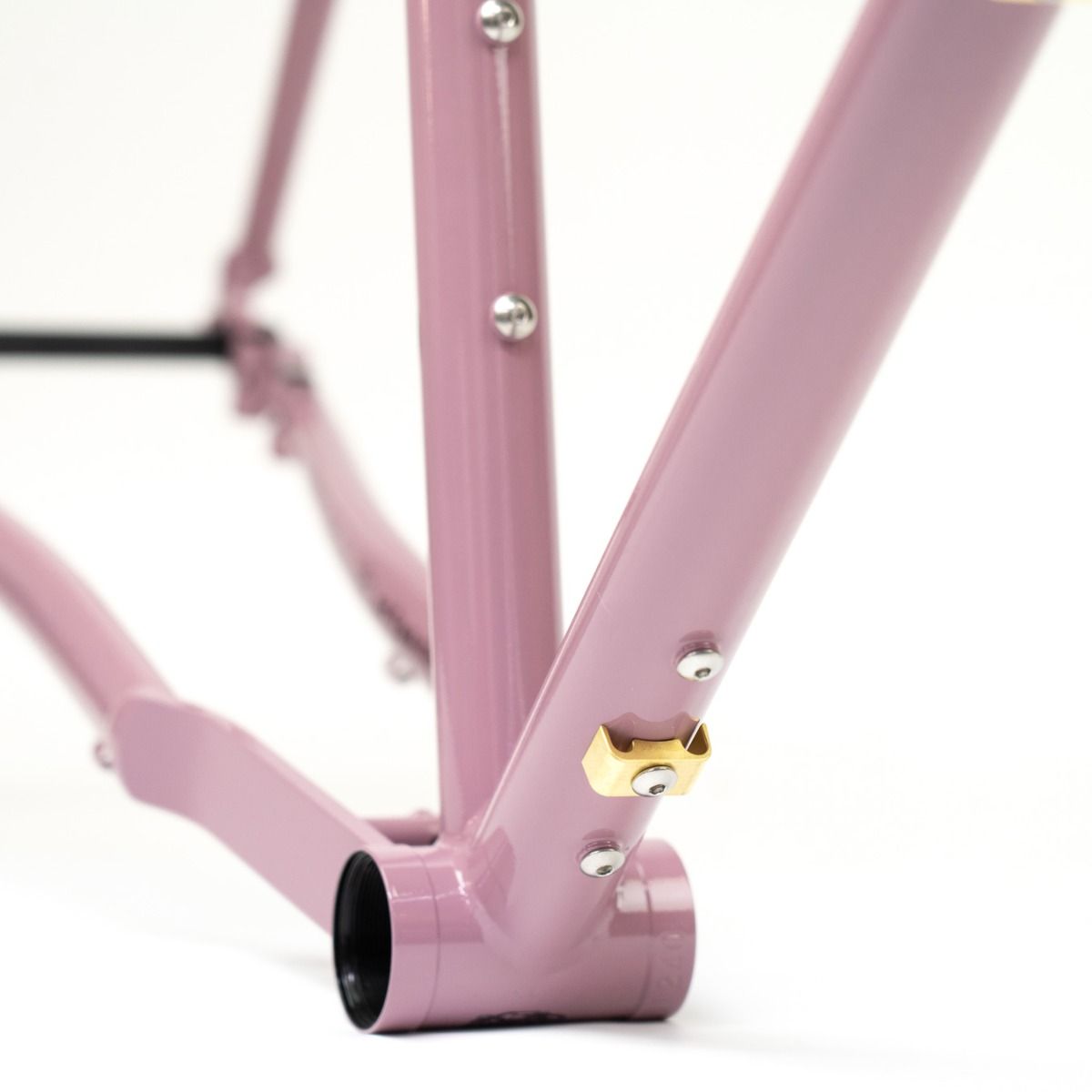

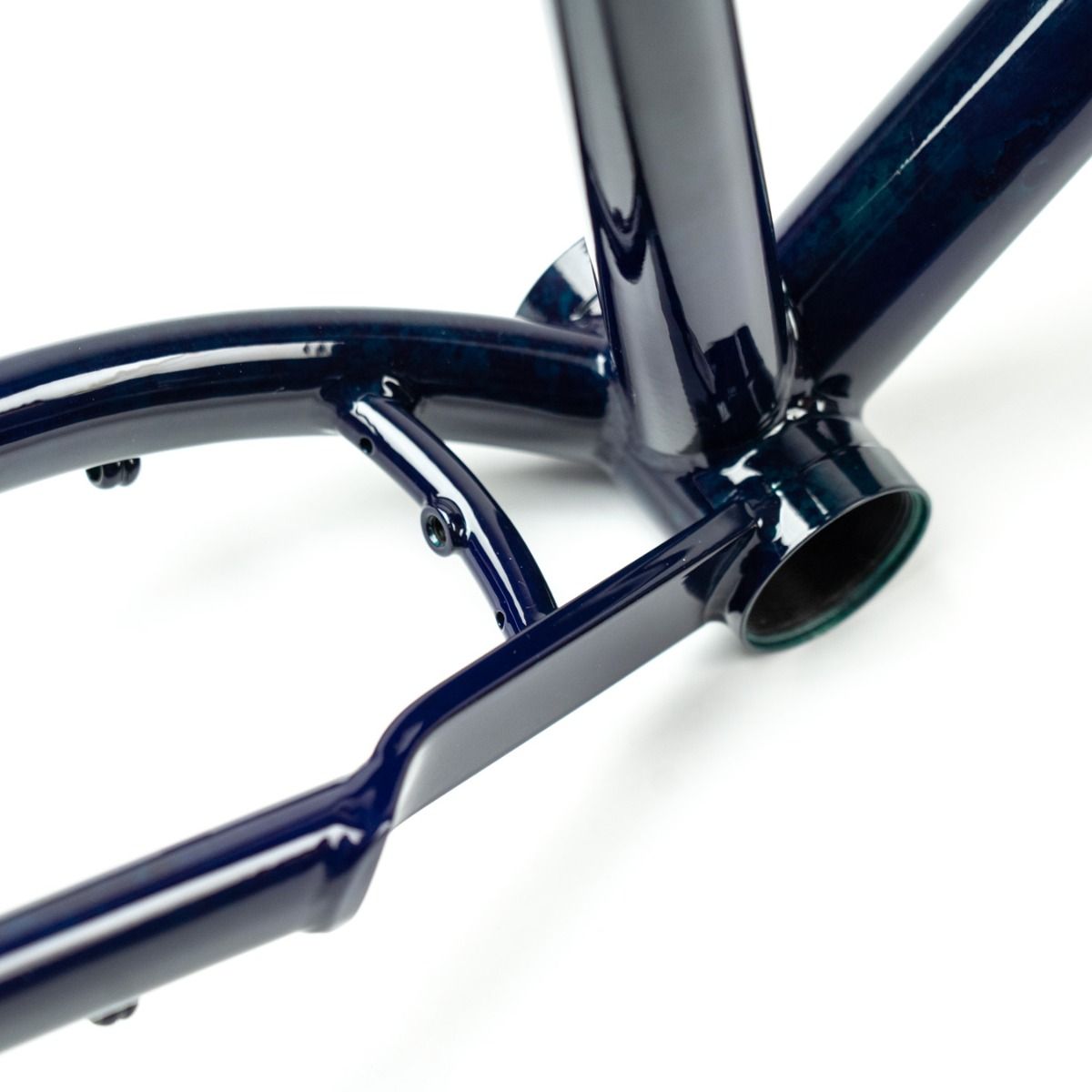

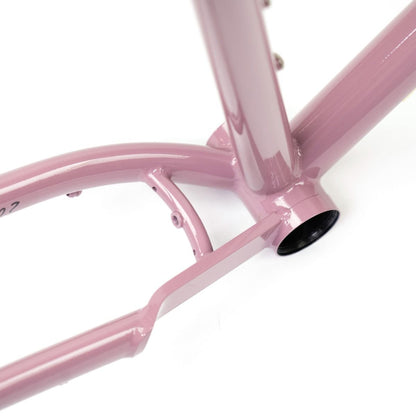

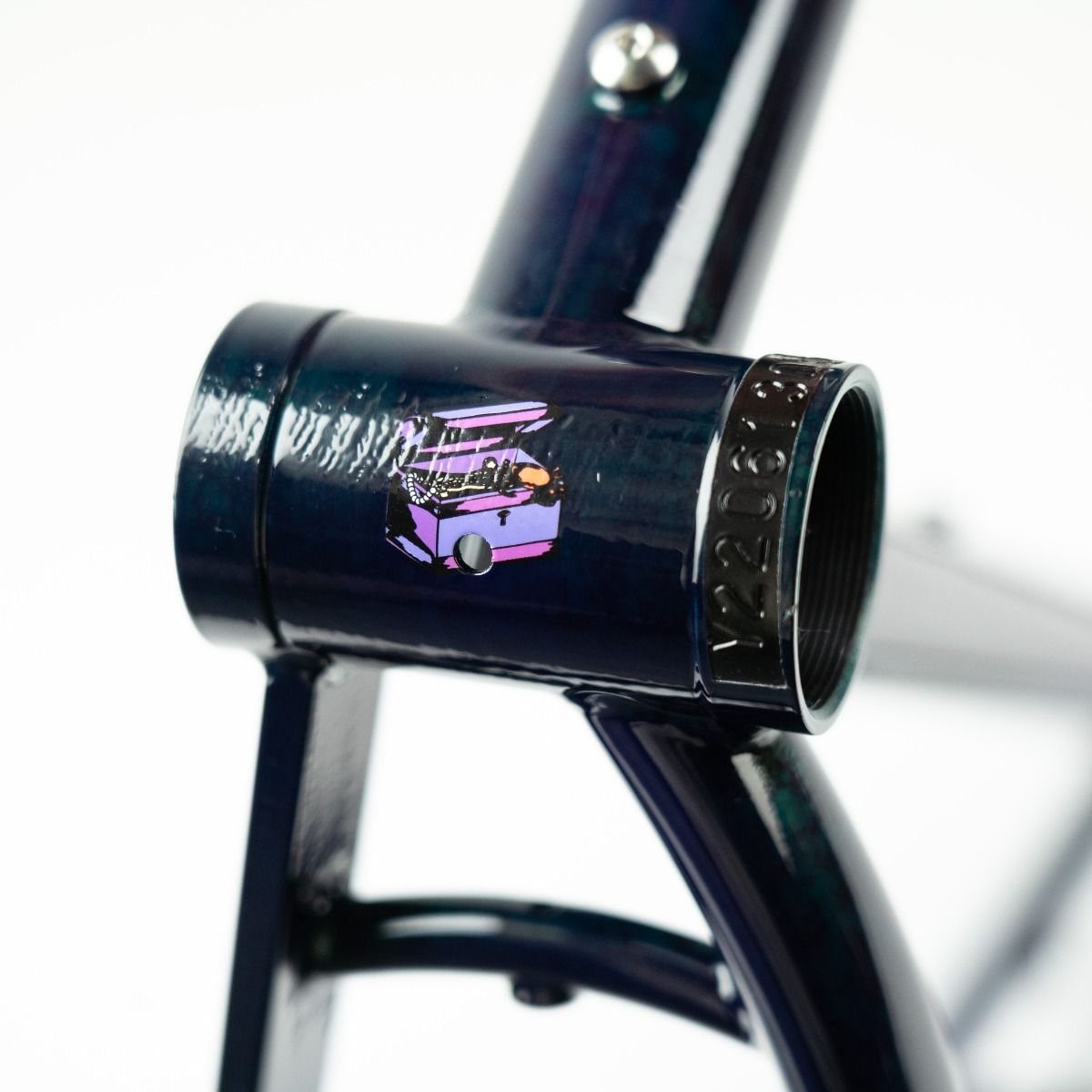

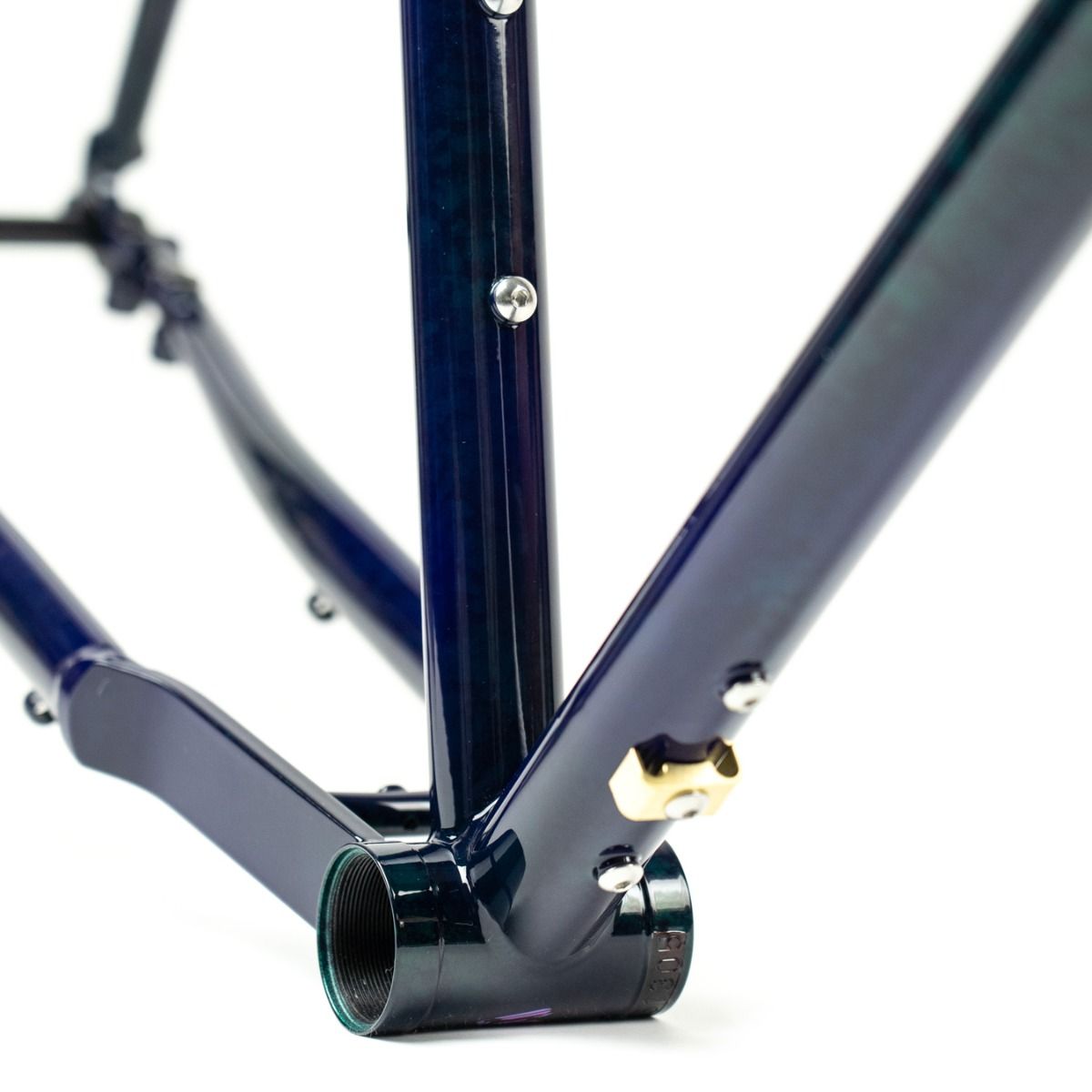

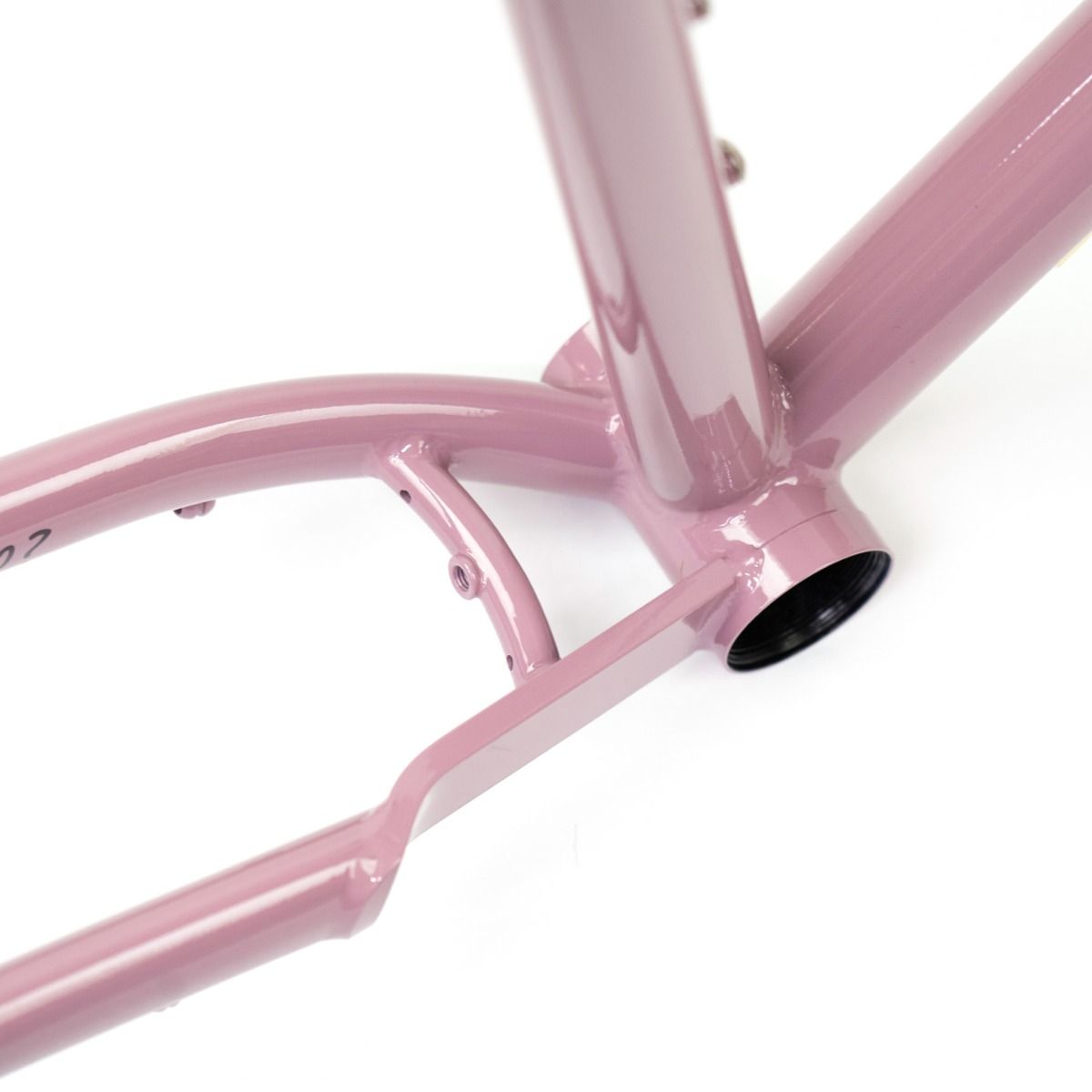

Bottom Bracket- 68mm English (BSA) Threaded
Steerer Tube Length- 350mm
Fork Spacing- 12x100mm

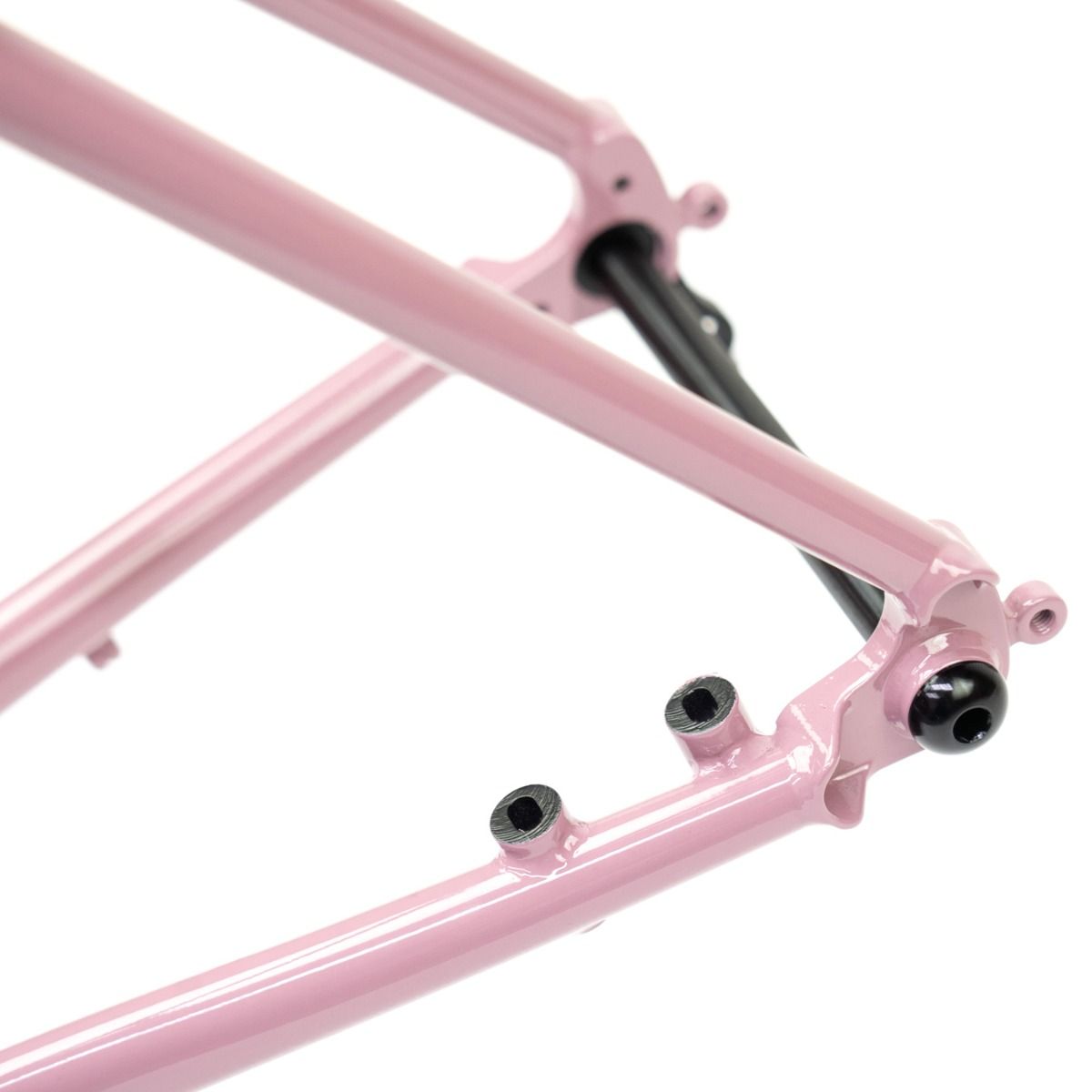

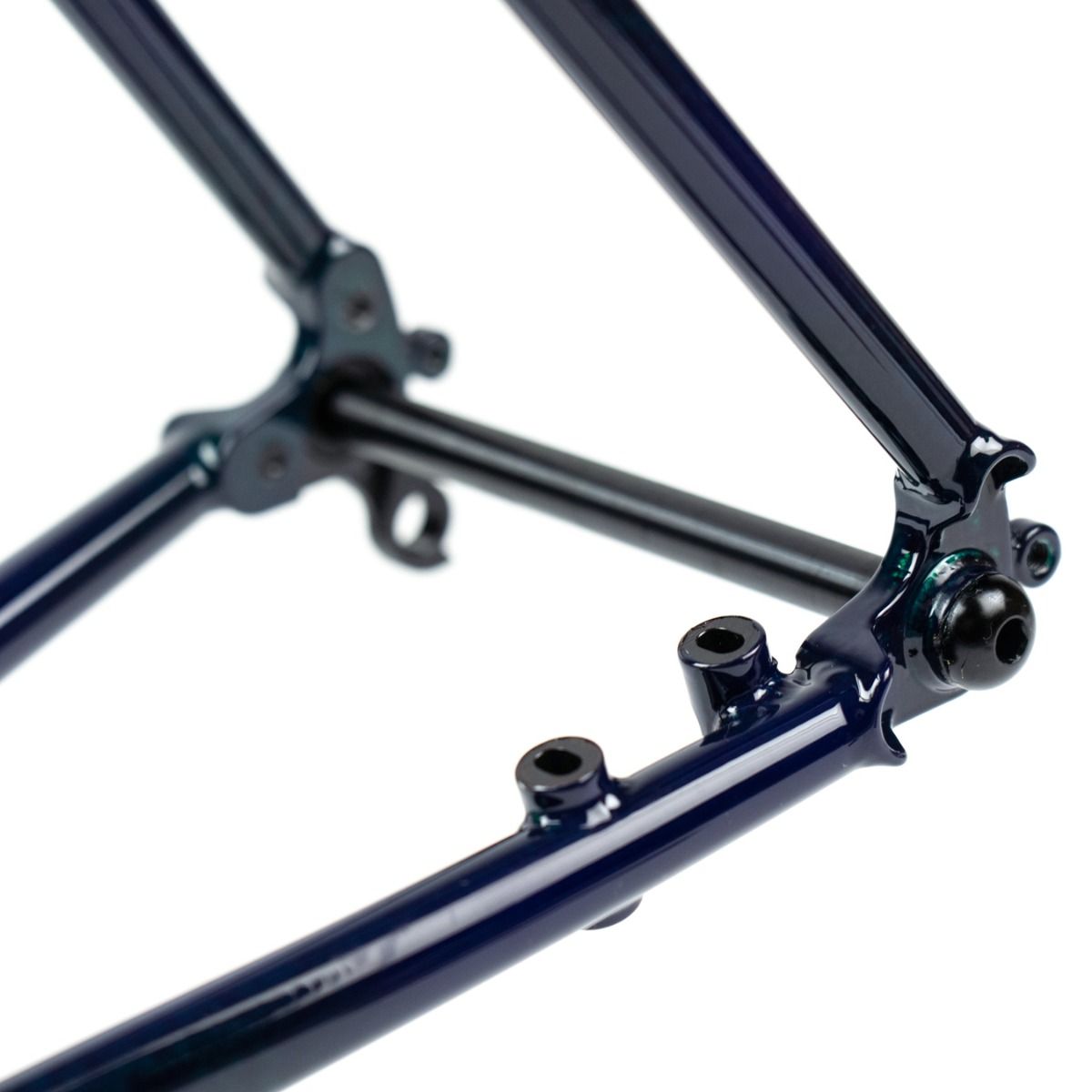

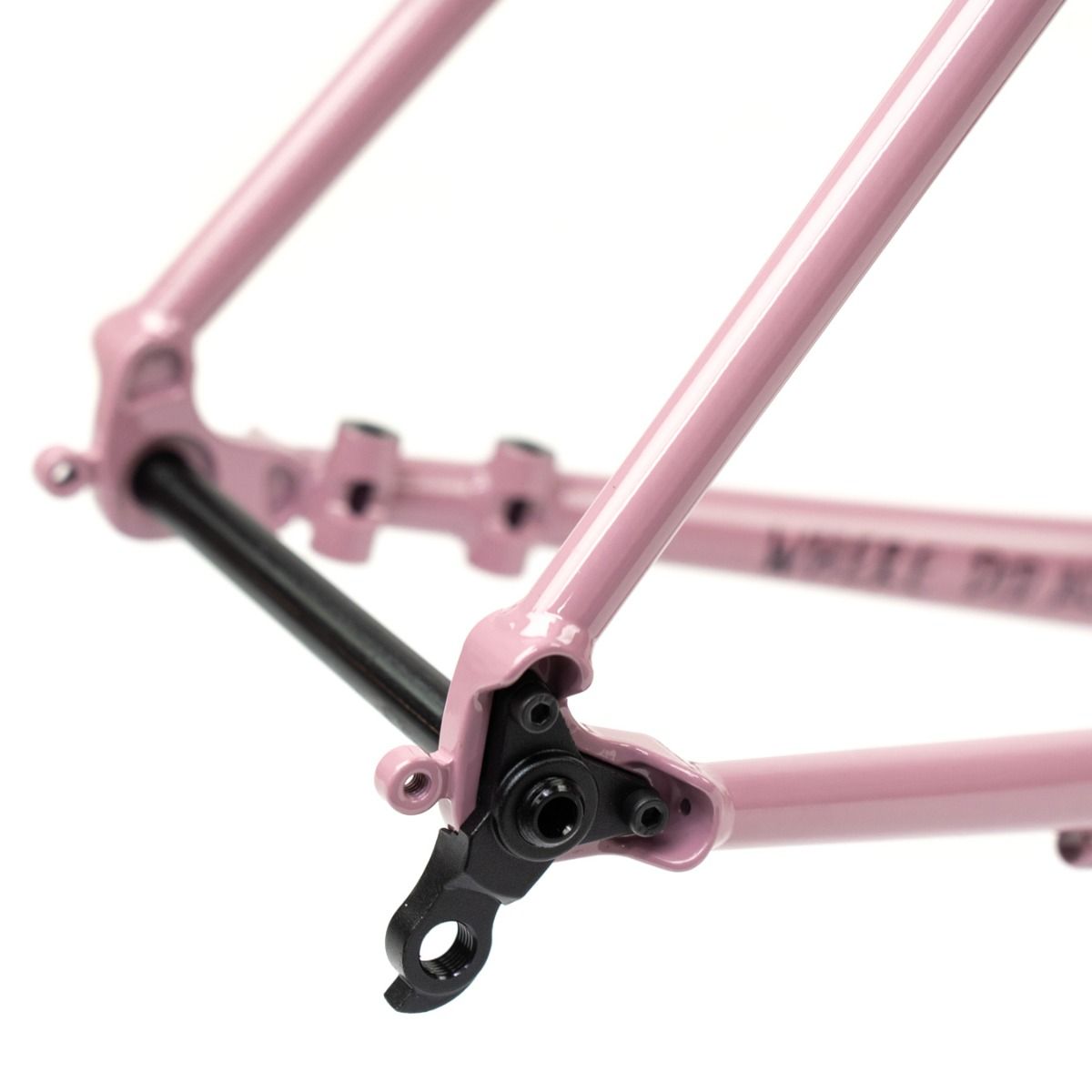

Rear End Spacing- 12x142mm
Front Axle Thread Pitch & Length- 1.5x132mm
Rear Axle Thread Pitch & Length- 1.5x164mm
Seat Post Diameter- 27.2mm
Weight- Frame (Large)- 2.27kg | Fork- 575g
