This is the Disc Brake/ Carbon Fork version of our Neoclassical Road frame The Malocchio.
Build Notes:

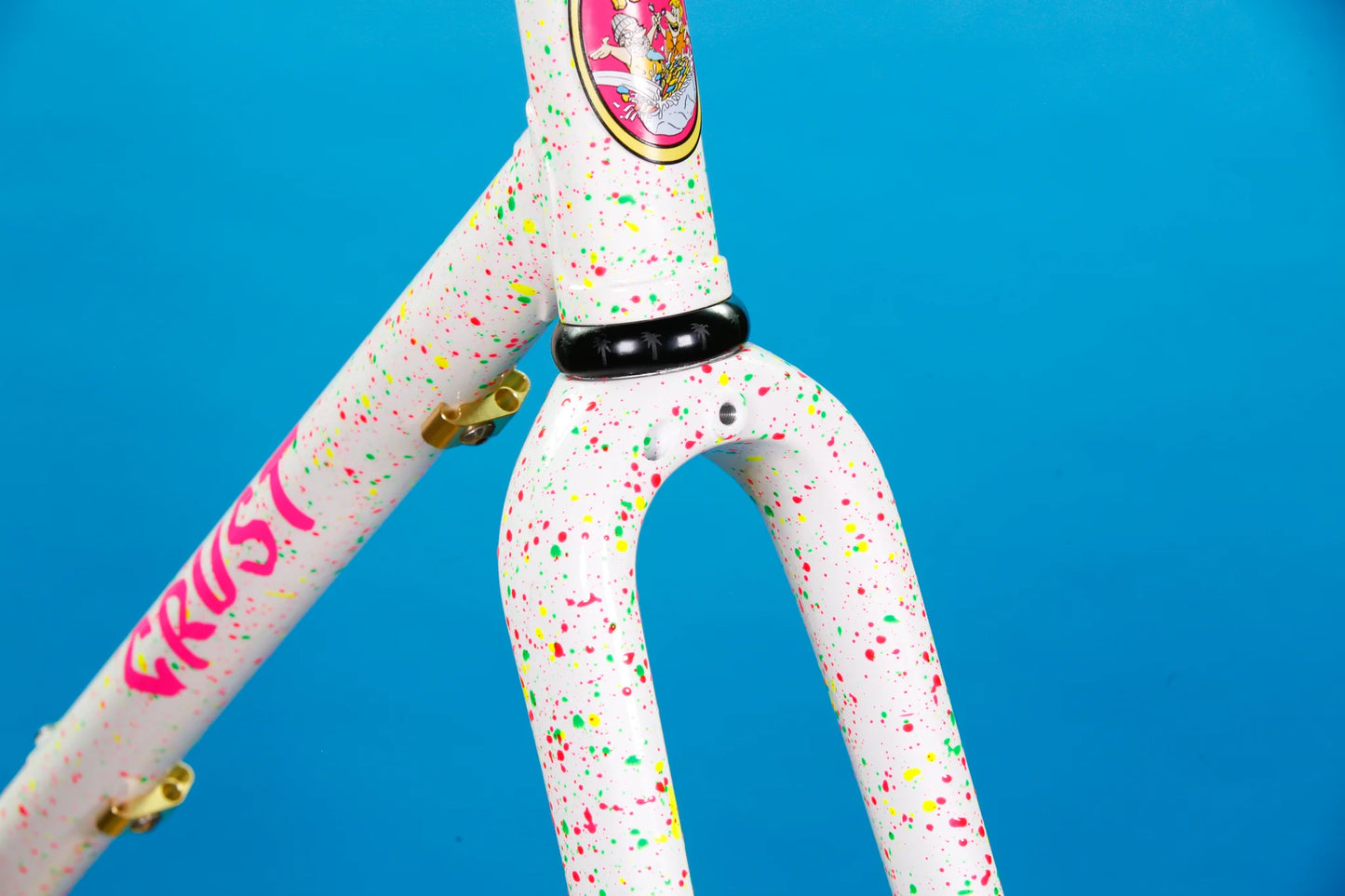

VERY IMPORTANT: Our carbon fork that Matt designed for this bike has an integrated crown race for the headset. If you or "your mechanic" try to hammer on a crown race and damage/ destroy the fork, that is on you.
Unlike it's rim brake counterpart, the Malocchio Disc is designed around a 700c wheel throughout the size range.
Recommended tire size is 38c (ish) or 35c-ish with fenders.
Set it up with a single, double, or even a triple ring crank.
Flat Mount Brakes Front and Rear with a 160mm Max Rotor Size Front and Rear
Most Calipers should bolt up by using around a 37 to 42mm Bolt up front and around a 32 to 37mm Bolt in the rear. It will vary caliper to caliper. This is not a guarantee, just a size range to help you figure it out. You'll have to apply some common sense and maybe some trial and error here. You want more than two threads holding your caliper on, but some caliper bolt holes are shallow, so a long bolt wont work.
ED Coated to help protect it from the elements and inhibit internal corrosion. This doesn't mean you're free to ride it into the ocean though.
Thru Axles and Fork Compression Plug are included.
Max Stack Under Stem= 40mm and you will need at least 5mm over top of the stem for the compression plug
HEADSET NOT INCLUDED
Details:

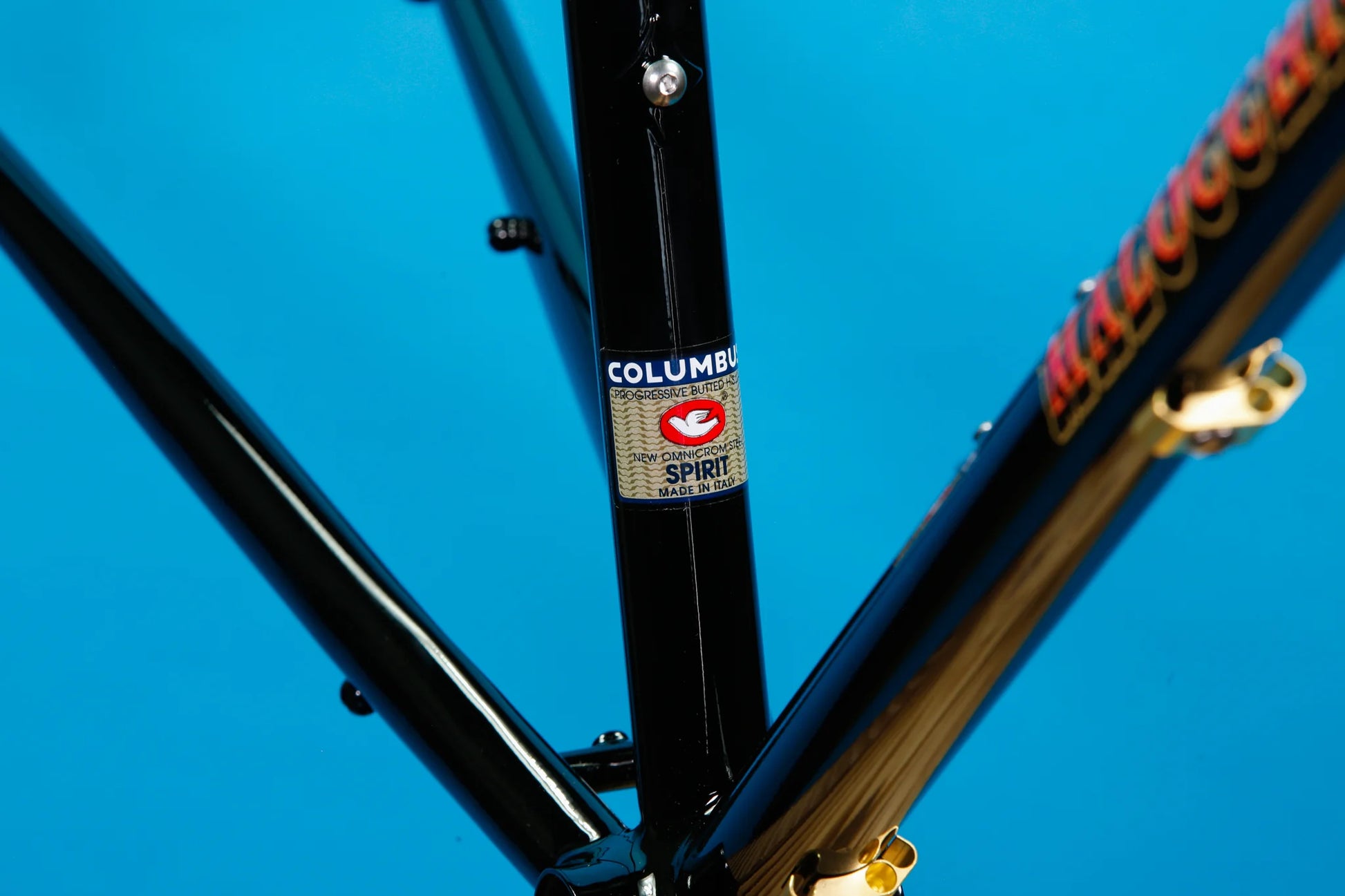

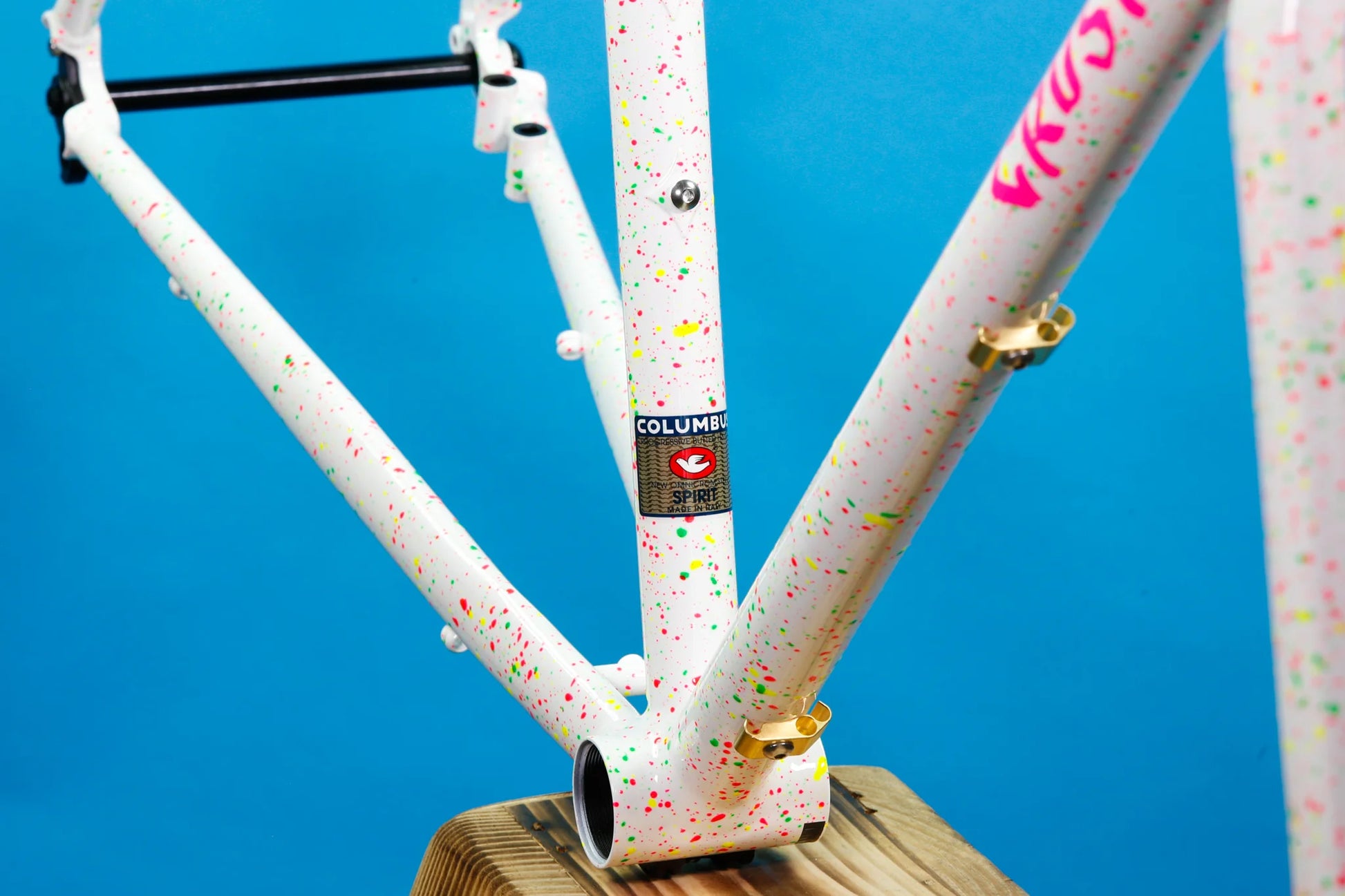

Handmade in Taiwan using Columbus Spirit Tubing

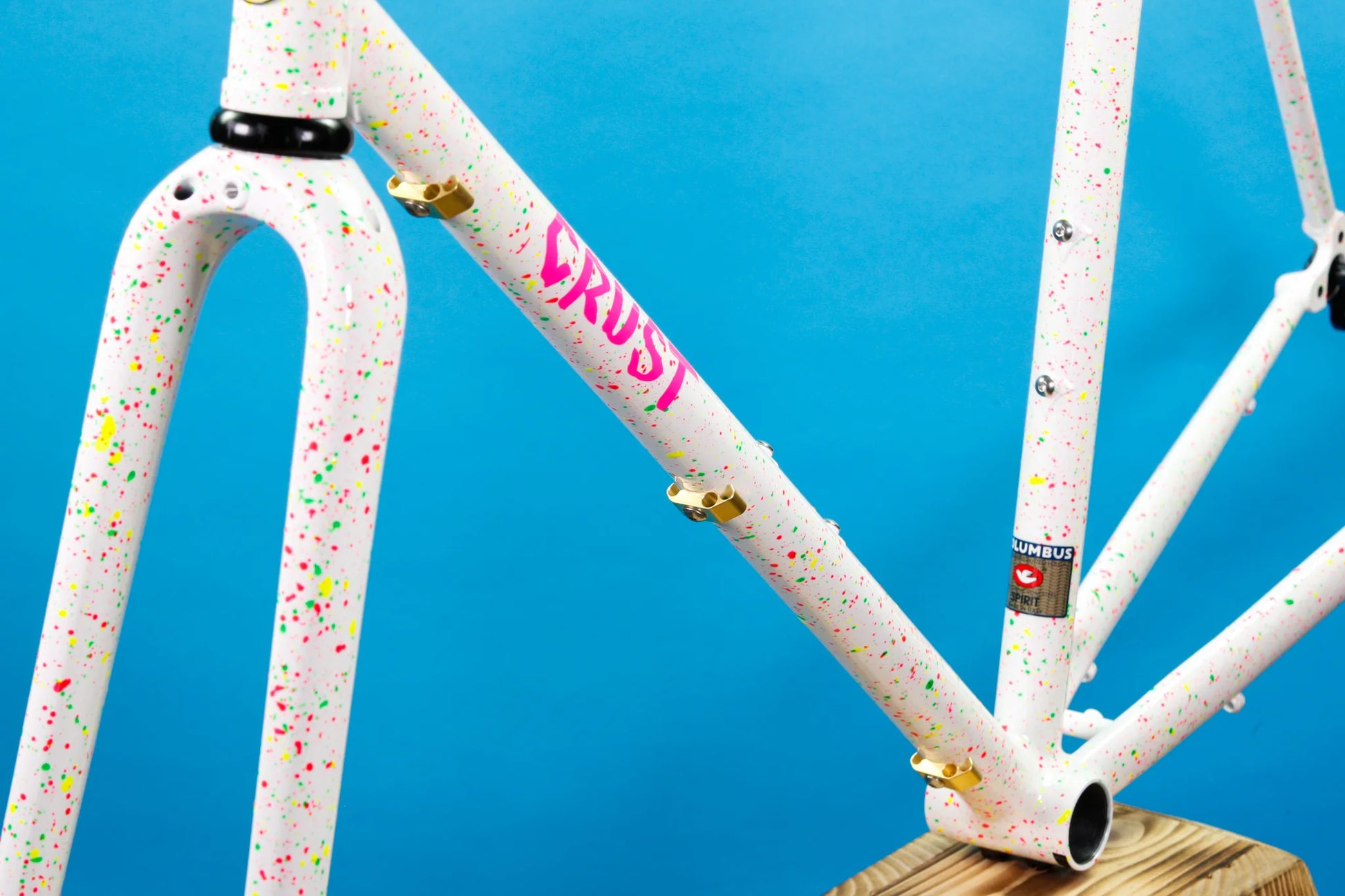

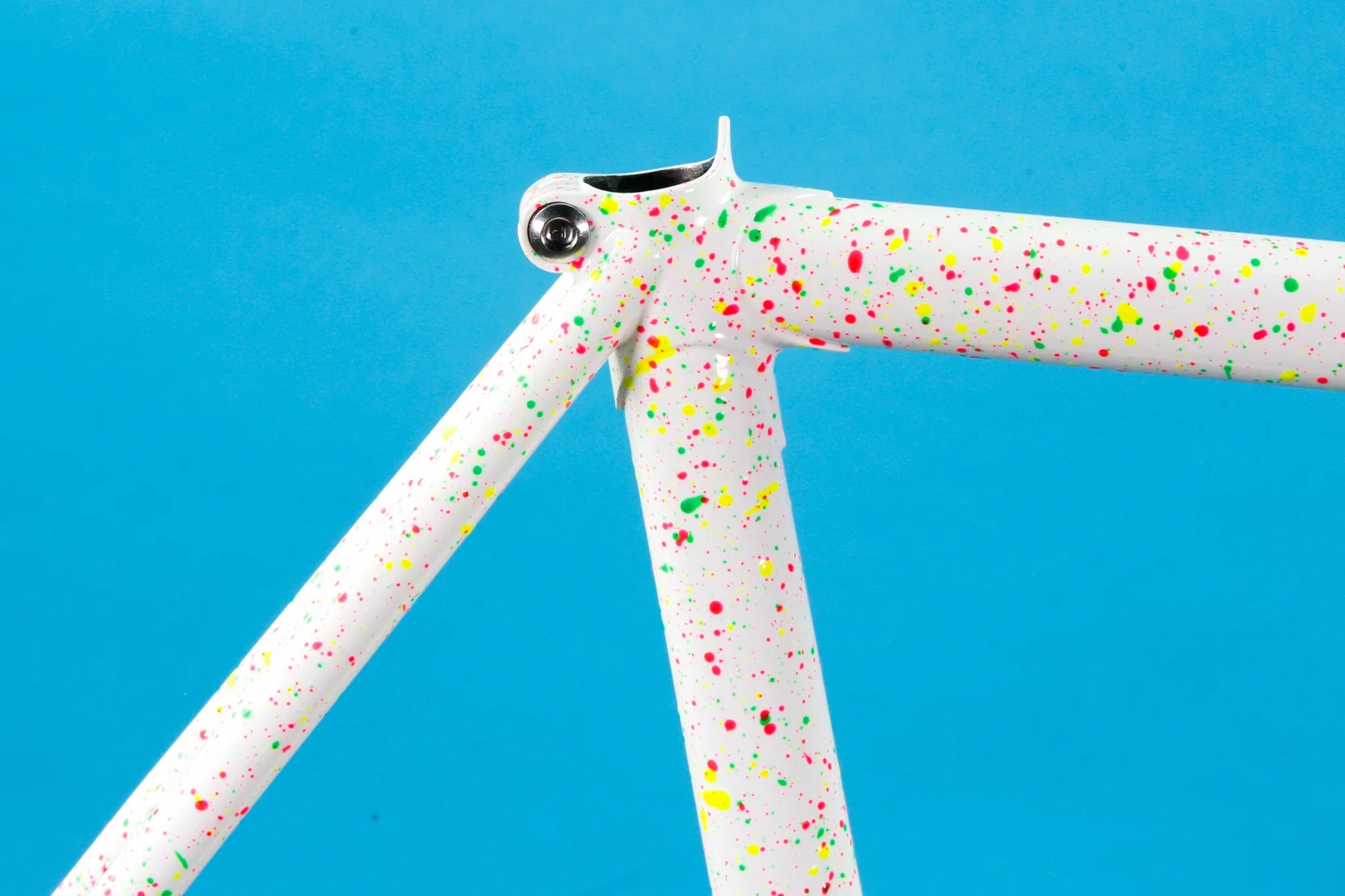

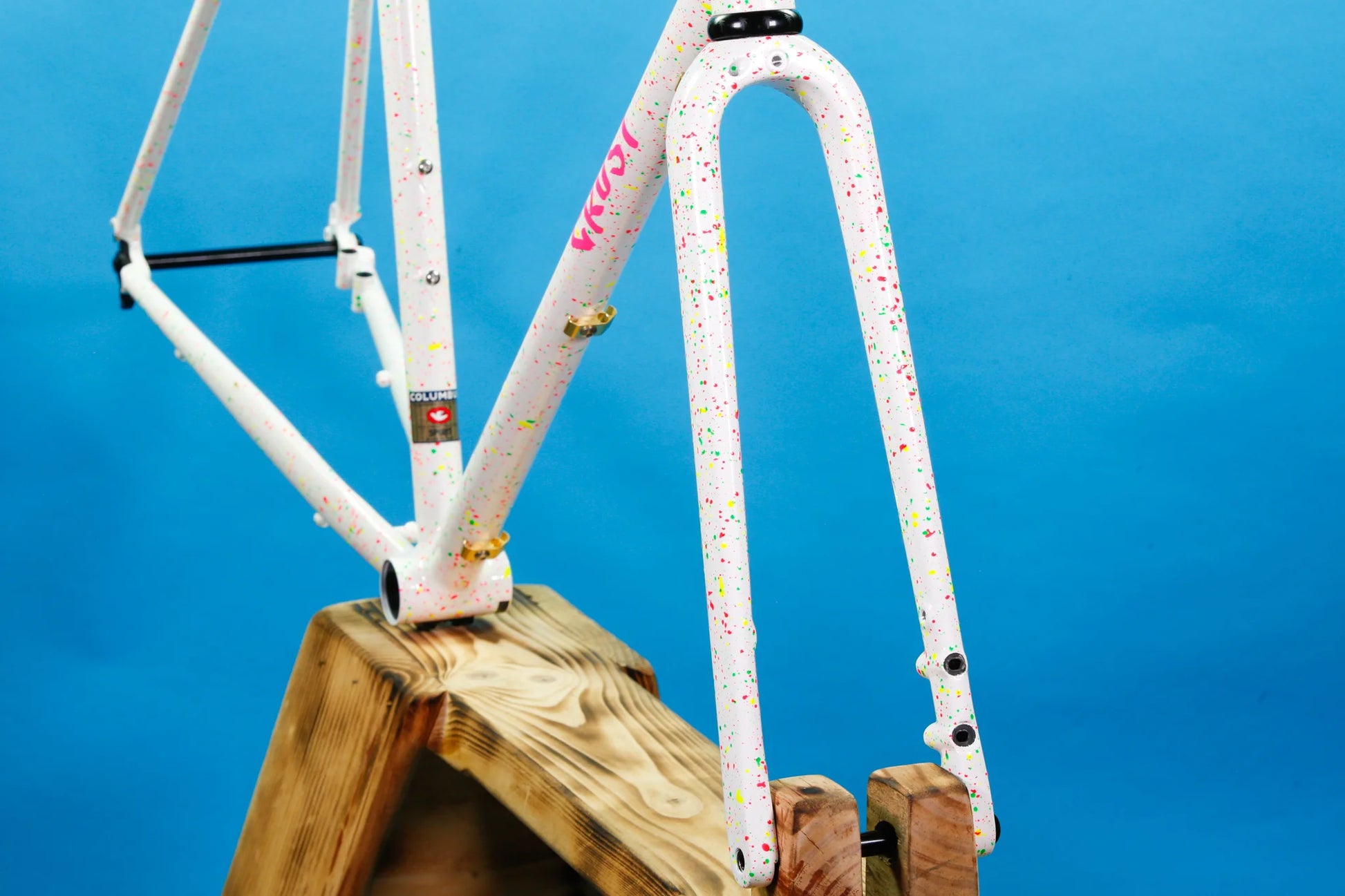

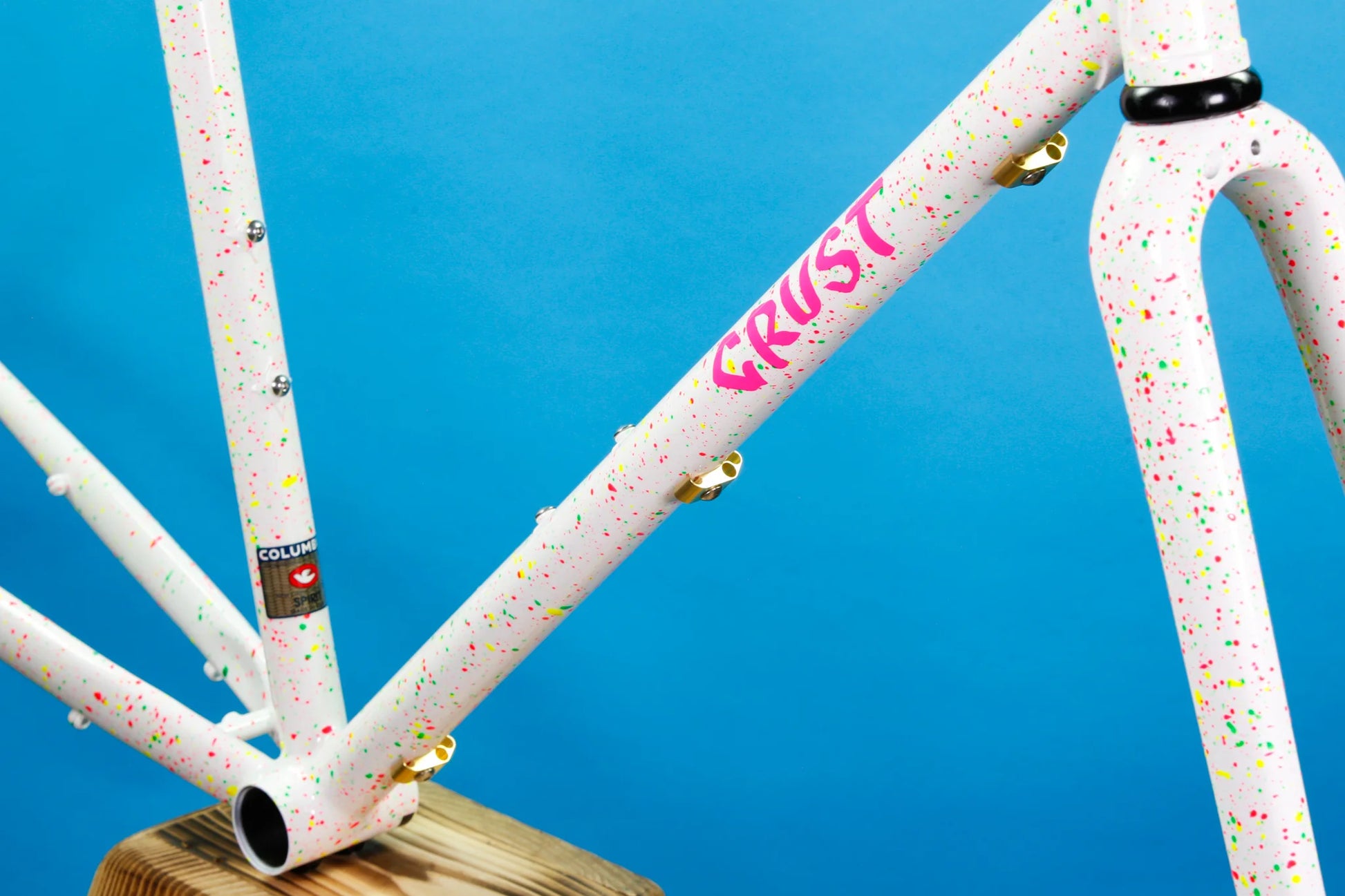

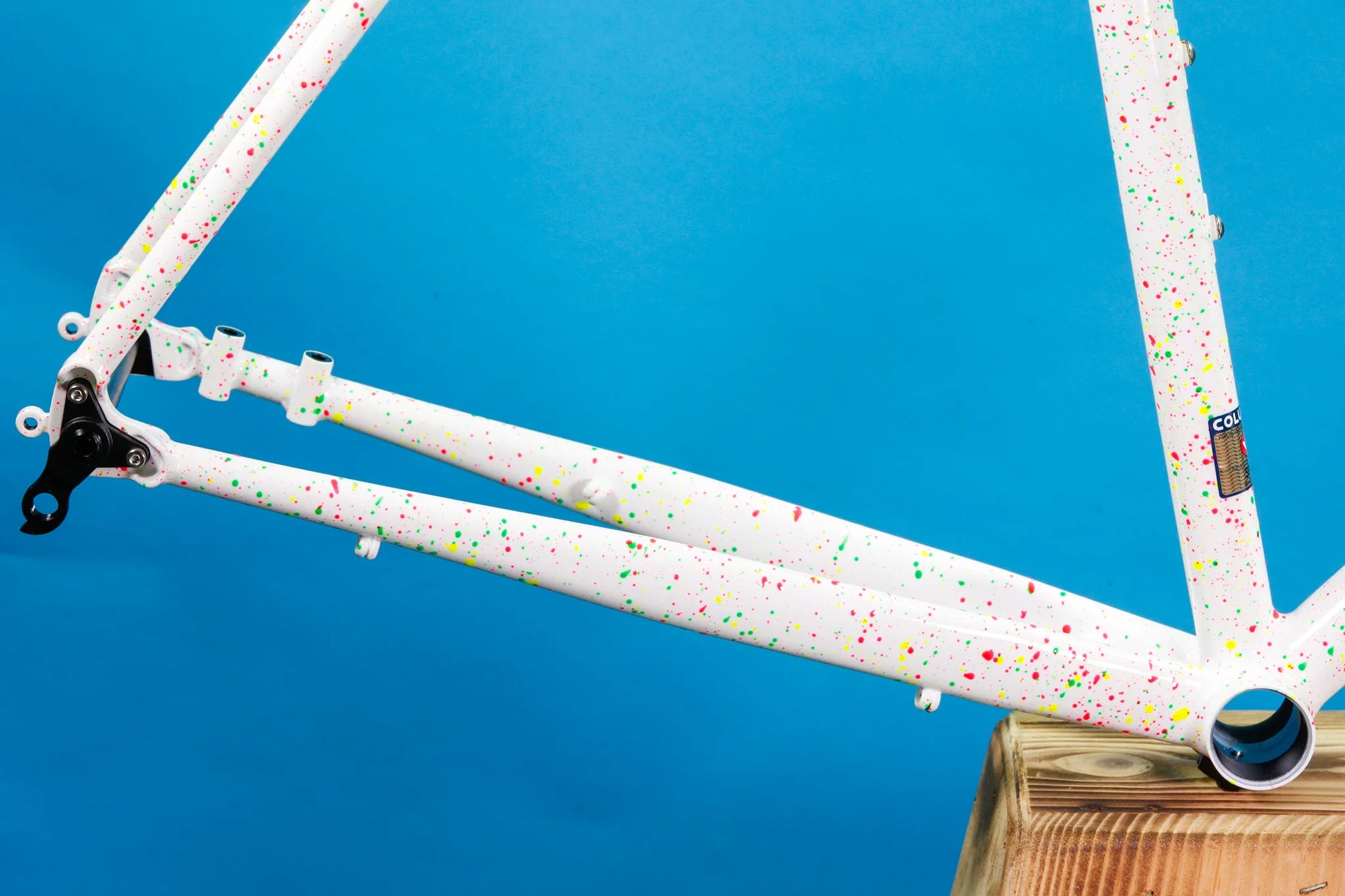

Lugged Construction with Fillet Brazed Bottom Bracket Junctions and an all Carbon Fork

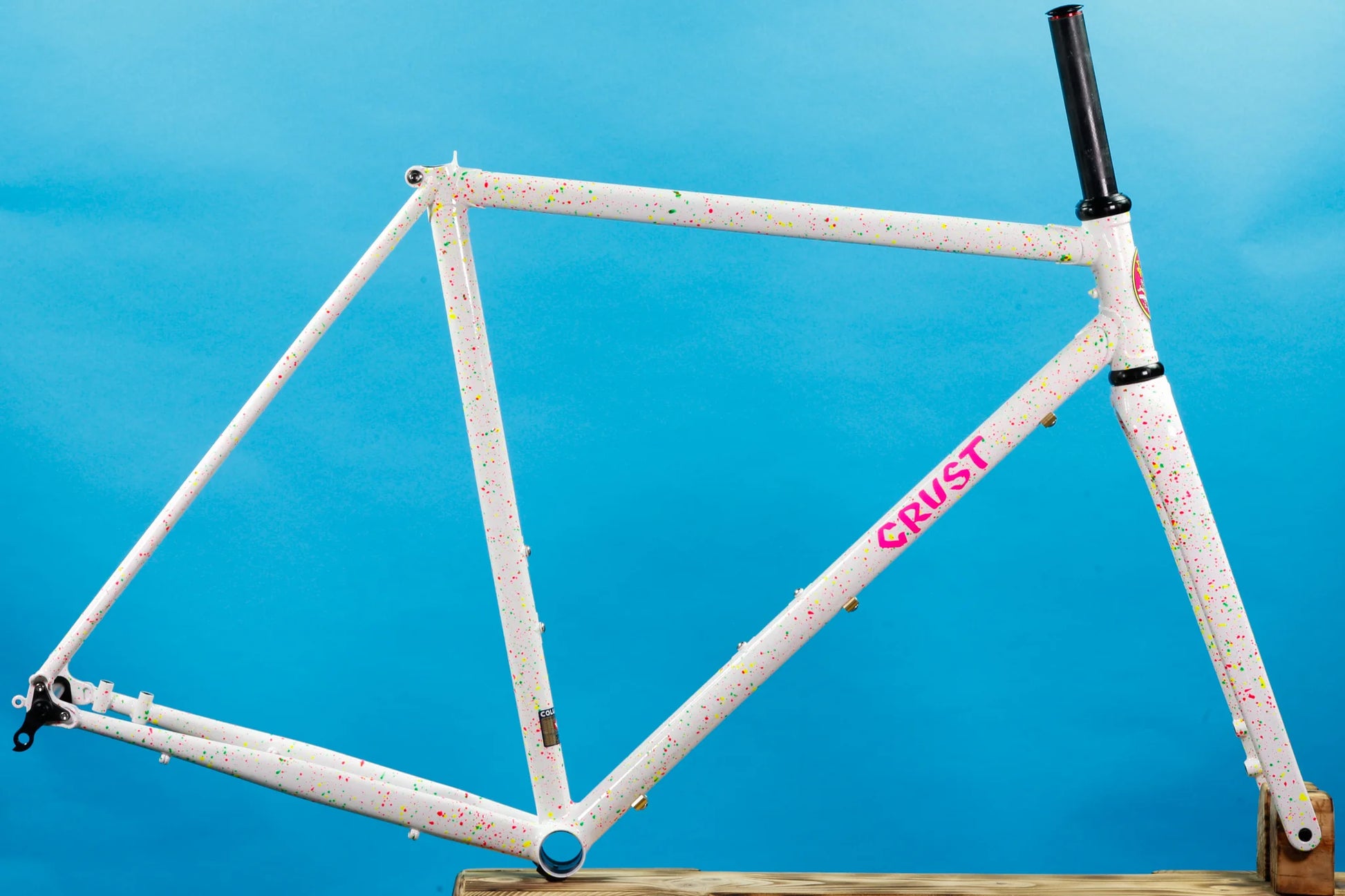

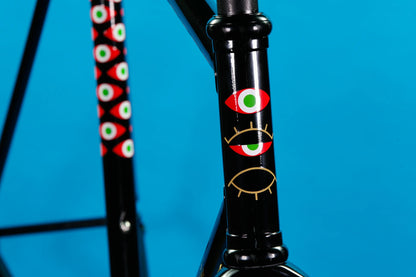

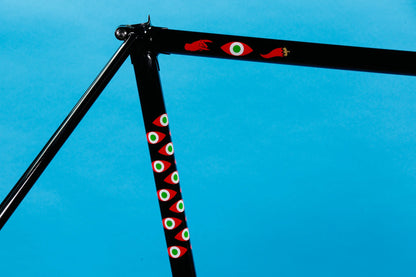

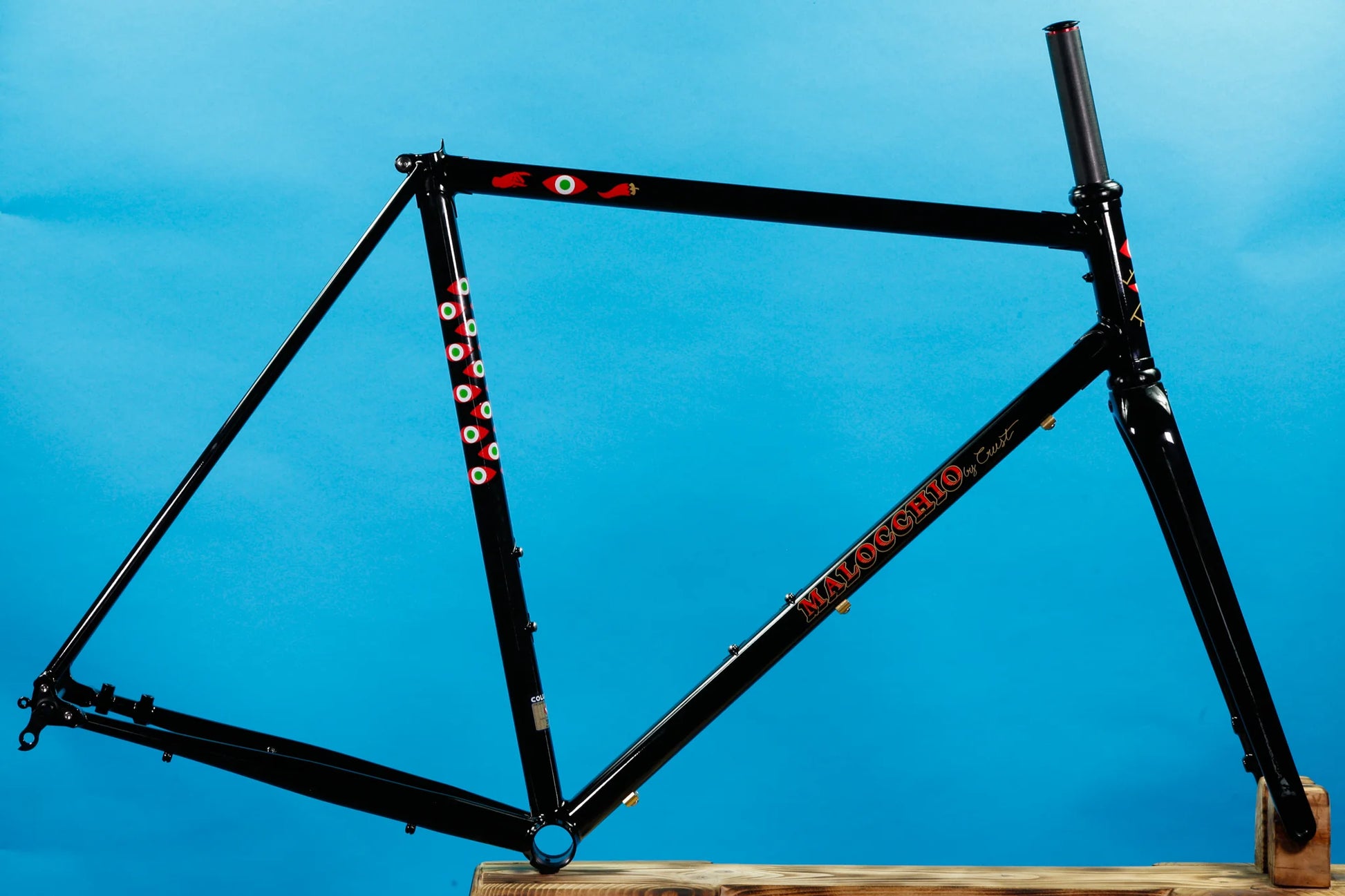

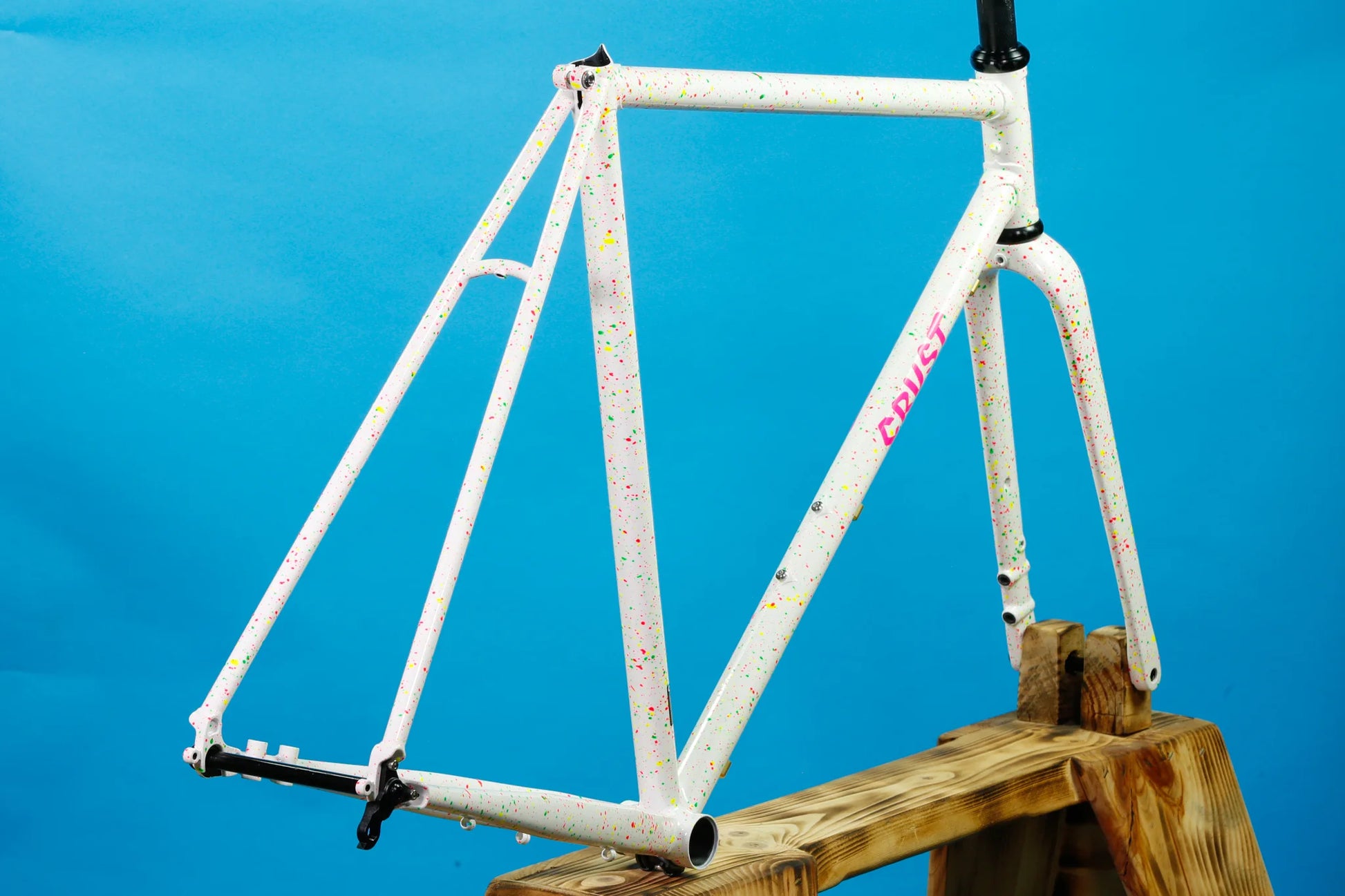

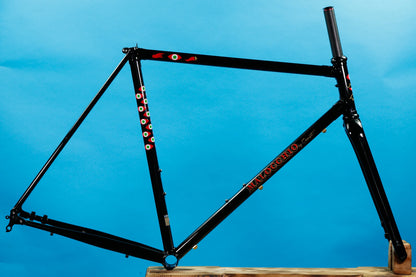

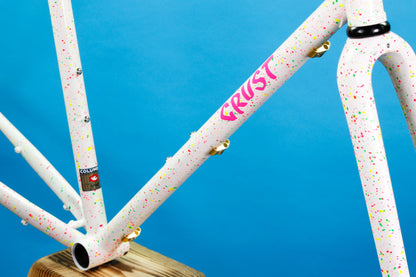

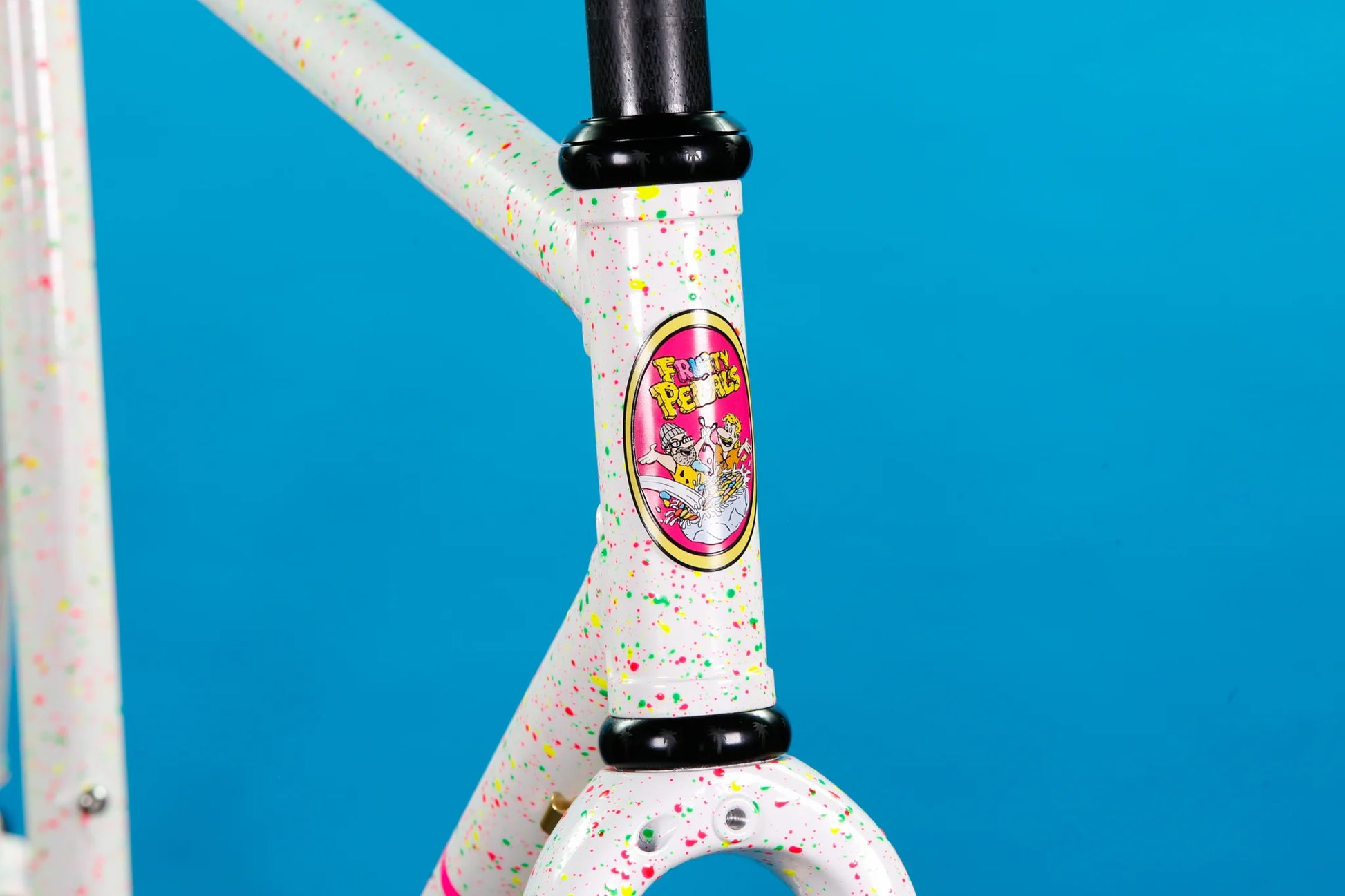

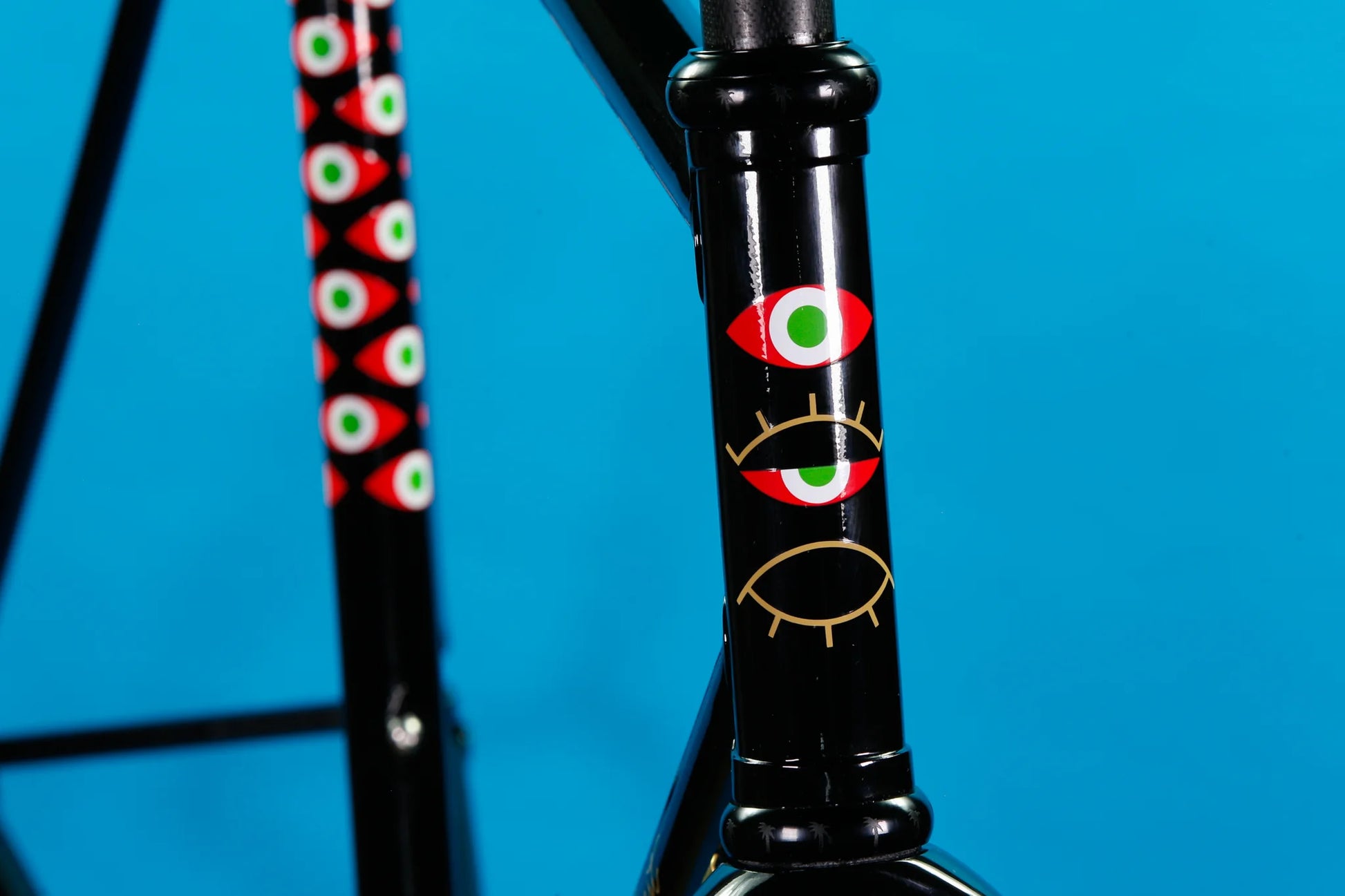

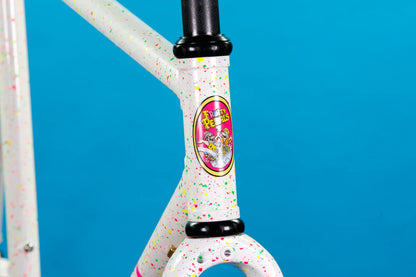

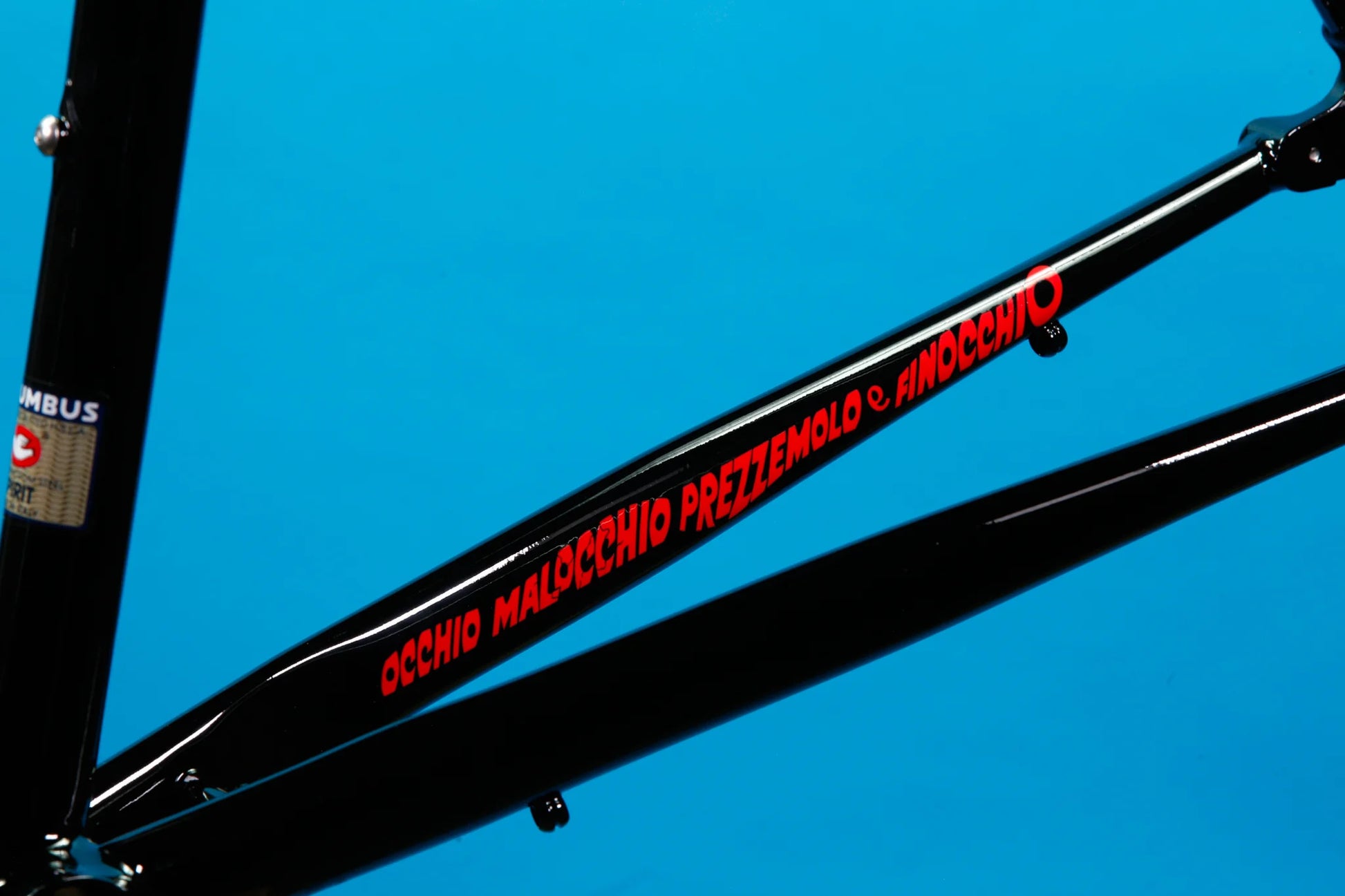

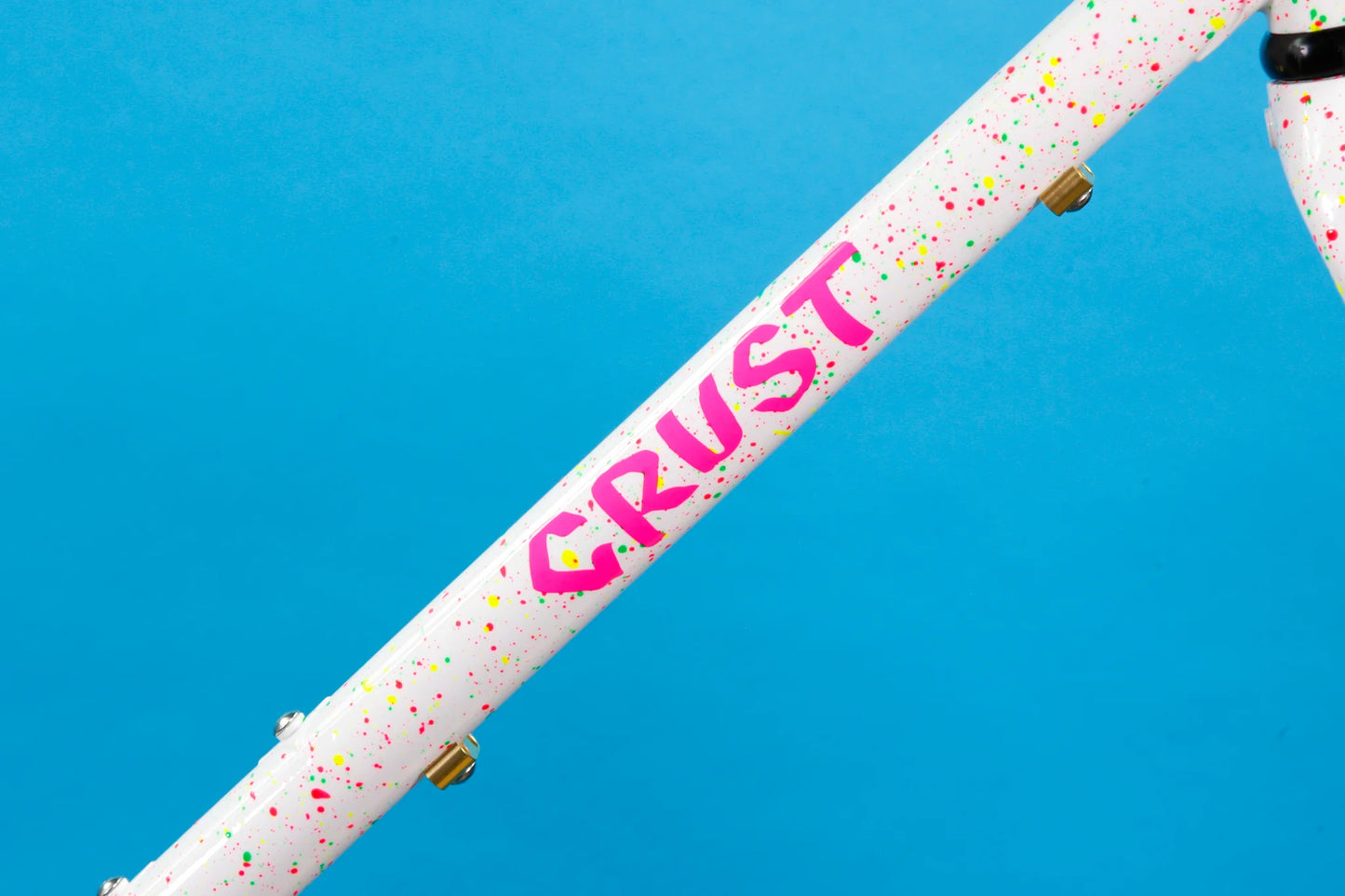

Color- Black or Fruity Pedals Speckle'd
Sizes- Extra Small 51cm | Small 53cm | Medium 55cm | Large 57cm | Extra Large 61cm

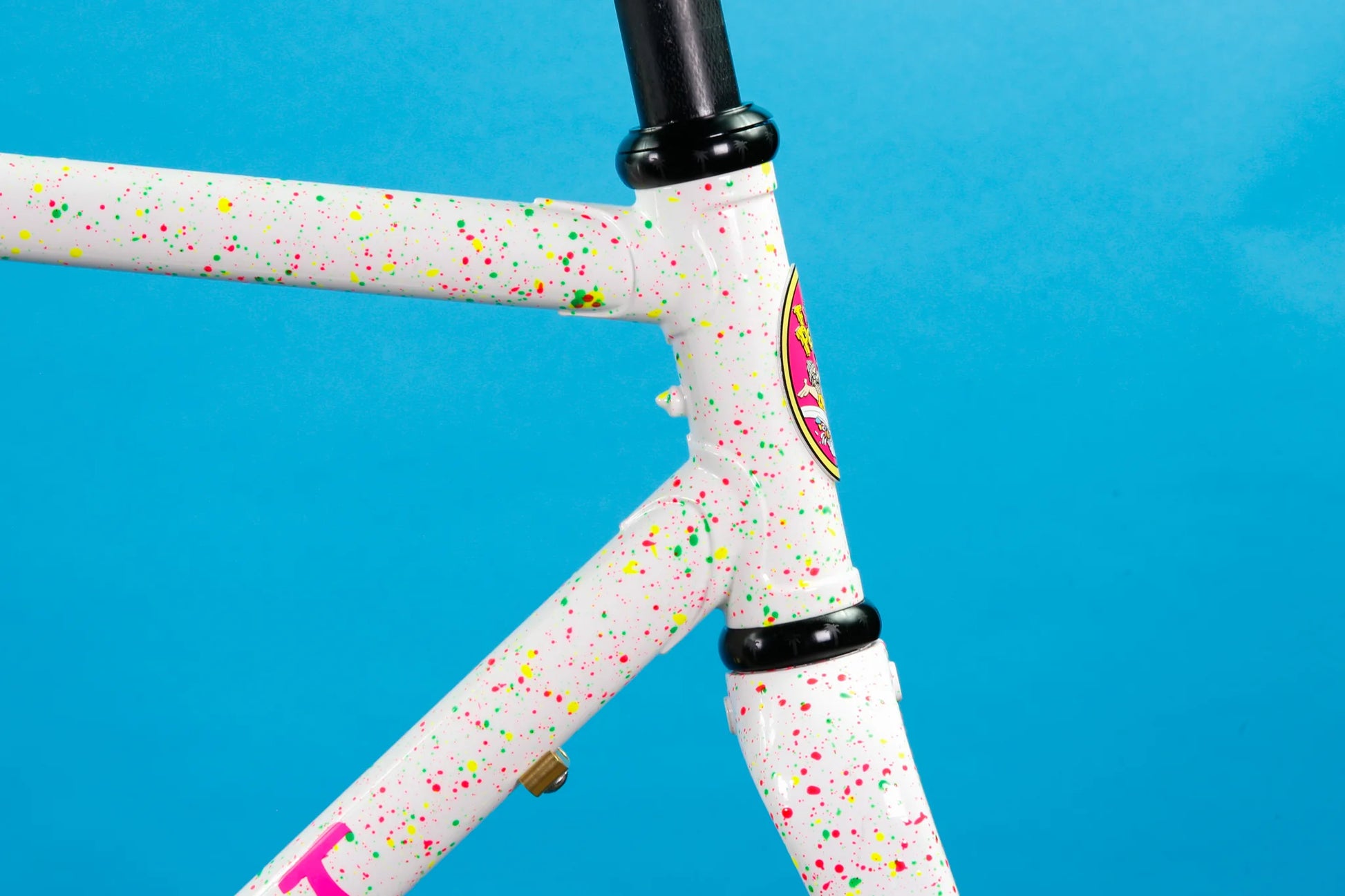

Head Tube Diameter- 1 1/8" (Threadless Steerer) with 30mm 45° Integrated Crown Race
Steerer Tube Length- 300mm

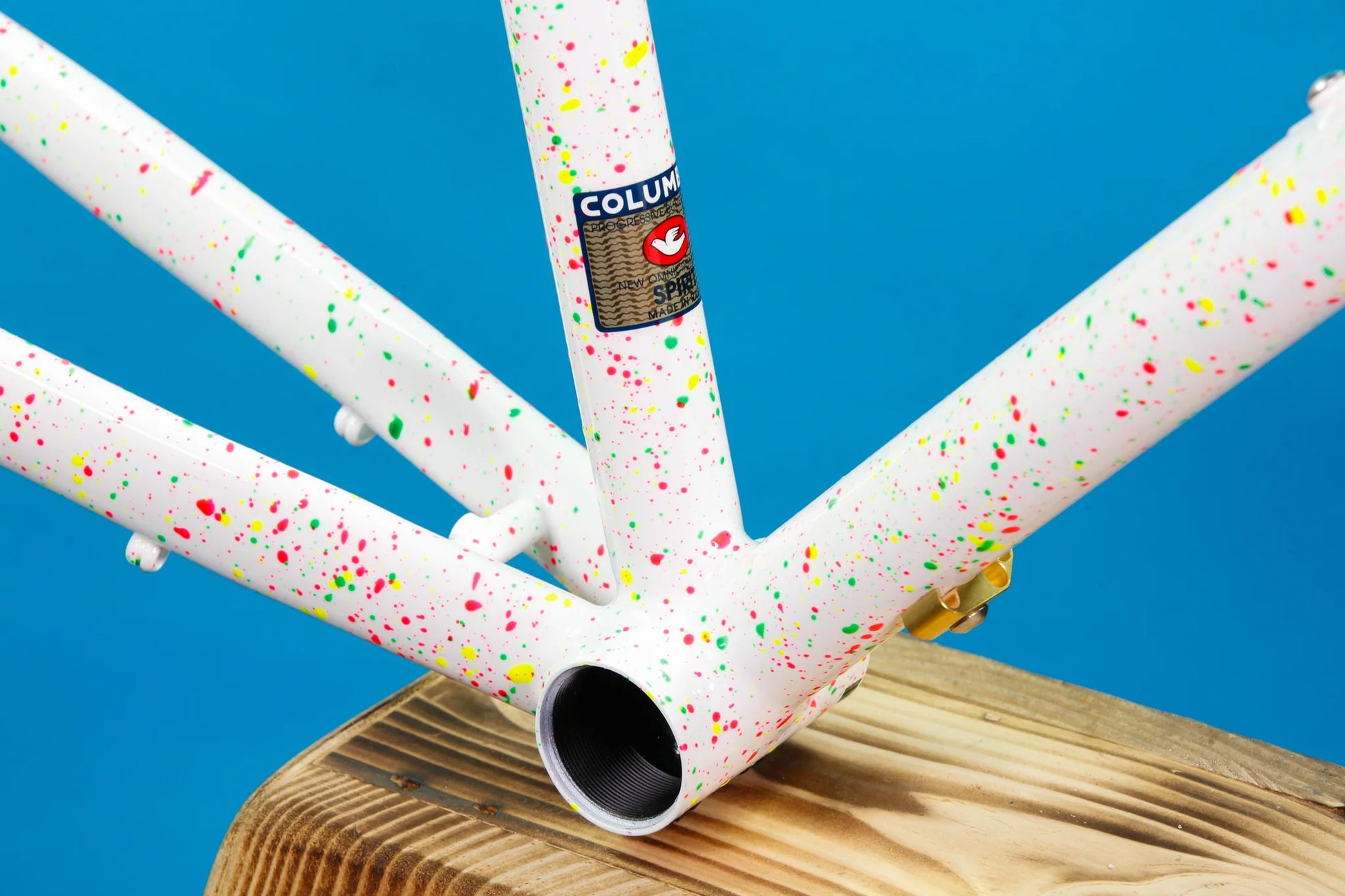

Bottom Bracket- 68mm English (BSA) Threaded

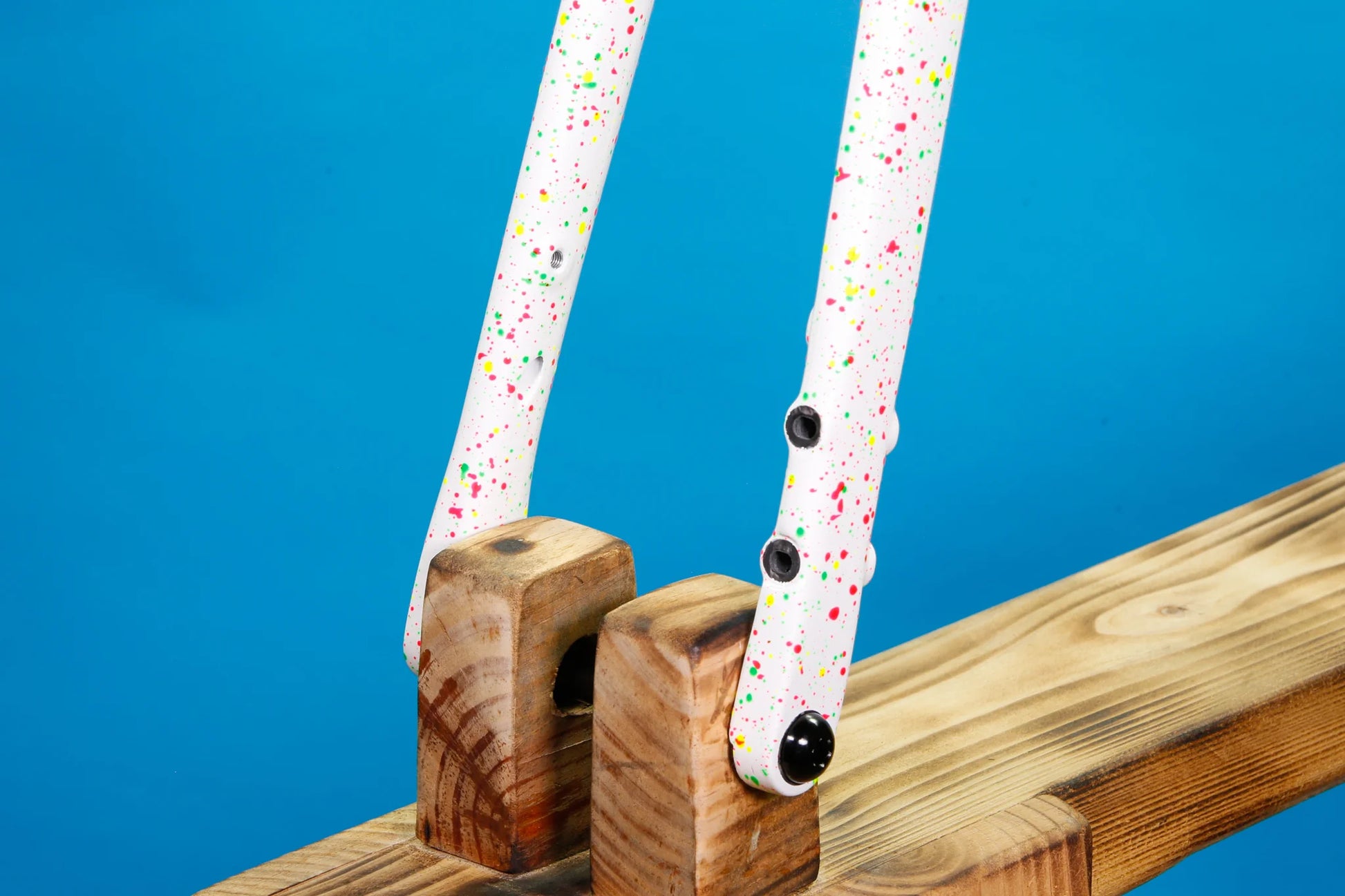

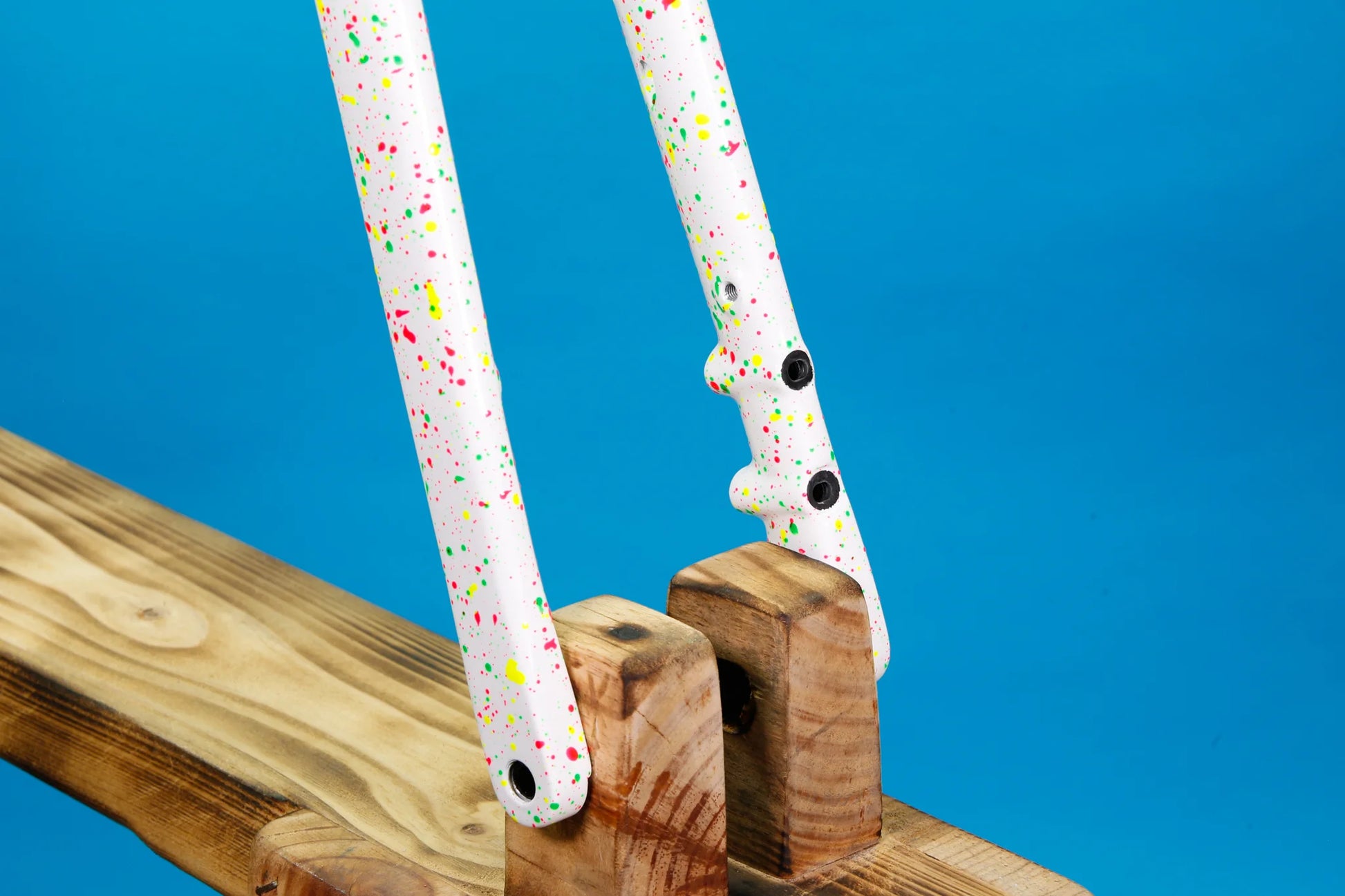

Fork Spacing- 12x100 Thru Axle

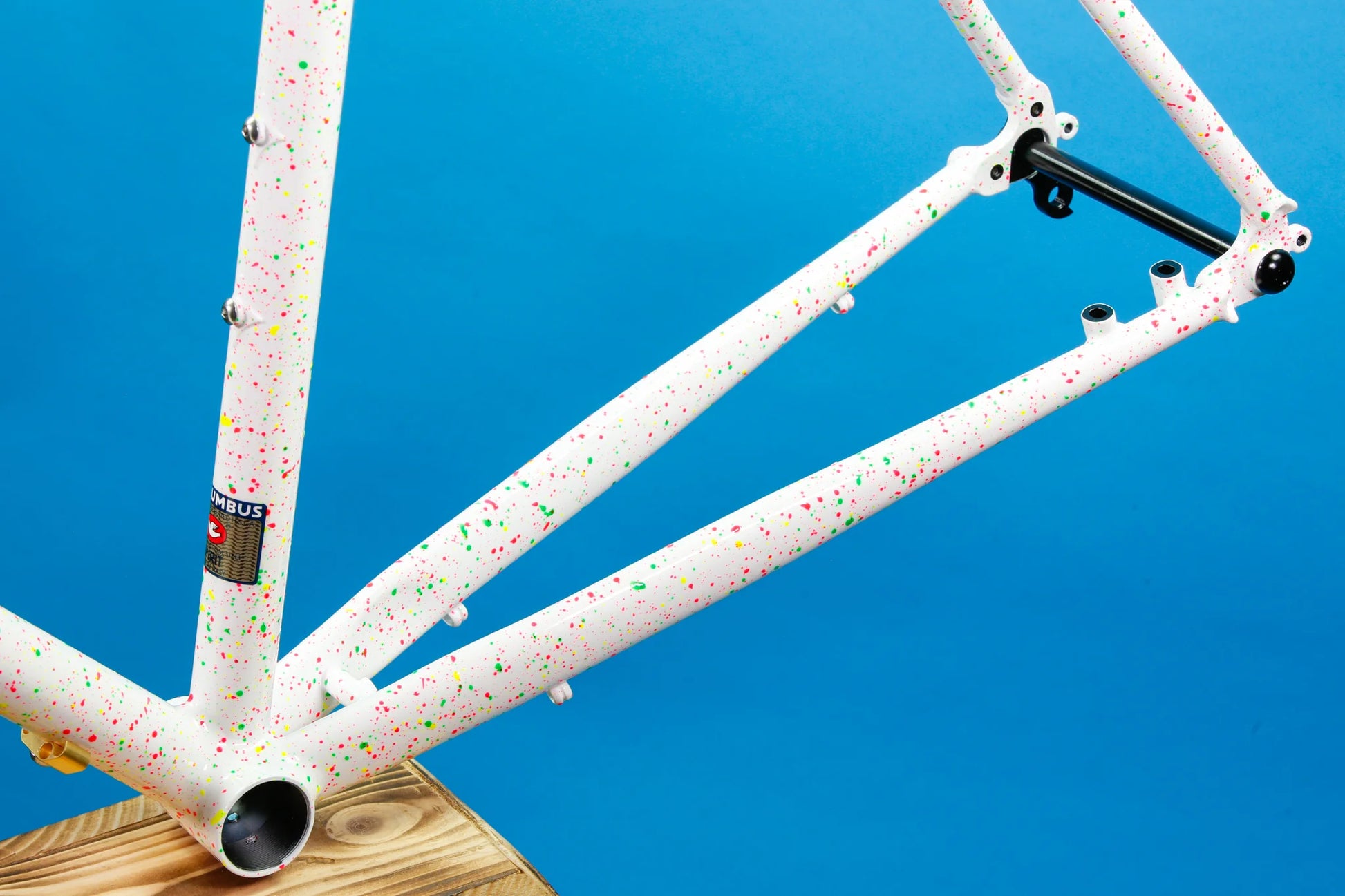

Rear End Spacing- 12x142mm Thru Axle
Front Axle Thread Pitch & Length- 1.5x124mm
Rear Axle Thread Pitch & Length- 1.5x163mm
Seat Post Diameter- 27.2mm
Weight- 55cm Frame= 2.07kg (4lbs 9oz) Fork (Uncut Steerer)= 473g (1lb 1oz)
